How to customize and localize the UserCheck portal
Solution

Table of Contents:

  1. Introduction
  2. General Disclaimer
  3. Changing the language in the UserCheck Portals (localization)
  4. Logo Removal and Customizations
  5. Expanding the UserCheck Text Width
  6. Redirecting to Static External .com Web Site
  7. Replacing the Check Point Text in the Browser Tab
  8. Replacing the UserCheck Icon in the Browser Tab and the Address Bar
  9. Changing the background color on the UserCheck pages
  10. Removing the HTTP 'GET' parameters from the URL
  11. Other Interesting UserCheck Features



(I) Introduction

This guide discusses several UserCheck customizations that provide the functionality of a public Internet access HotSpot for specific networks. When users on those networks attempt to access the Internet, they will be automatically re-directed to the HotSpot page (a functionality similar to the Edge HotSpot feature).

The particular scenario is a retail environment in which a customer uses his or her mobile device to connect to the retailer's Wi-Fi network, thus gaining access to the in-store Internet connection. The retailer requires that the customer be presented with a "Terms of Use" page; after clicking on an acknowledgment button, the customer will be directed to the retailer's main .com Internet web site. After this redirection, the customer is free to browse wherever he/she wants, limited by the Application Control & URL Filtering policy.

The HotSpot functionality has to meet the following requirements: removal of all vendor graphics and product references, redirection to a specific web site after the customer acknowledges the Terms of Use, and the ability to insert custom logos and text.



(II) General Disclaimer

Any customizations made should be fully tested to ensure proper operations. Recognize that upgrades and hotfixes can potentially remove these customizations, so testing updates to determine compatibility with these customizations is recommended.


Note that all the changes mentioned apply to files residing on the Security Gateway, not the Security Management Server.

In order for the customizations to take effect, run these commands on the Security Gateway: either 'cprestart', or 'mpclient stop UserCheck ; mpclient start UserCheck'.



(III) Changing the language in the UserCheck Portals (localization)

You can use more than one language in the UserCheck Portal. You can localize the whole portal, and not just the message to the user. For example, you can localize the "OK" and "Cancel" buttons.

Languages supported by default:

  • English
  • French
  • Spanish
  • Japanese

For example, to localize the "OK" button into French, follow these steps:

  1. Add the desired language into the /opt/CPUserCheckPortal/phpincs/conf/L10N/supportedLanguages.php file (using the comma).

    Note: For the list of languages and their abbreviations, refer to the /opt/CPUserCheckPortal/phpincs/conf/L10N/languageCodes.php file.

    <?php
    $arLanguages =  array(
        "en" => "English",
        "fr" => "French"
    );

    //In automatic language detection, a 2nd degree match - of the prefix only - use these defaults for multi-dialect languages
    //This list includes only languages for which we support one dialect only.
    $arMultiDialectLanguages = array(
            "en" => "en",
            "fr" => "fr"
         );
    ?>

  2. Create the new UserCheck Portal file in the desired language inside the /opt/CPUserCheckPortal/phpincs/conf/L10N/ directory - based on the existing English file /opt/CPUserCheckPortal/phpincs/conf/L10N/portal_en.php

    Notes:

    • For the list of languages and their abbreviations, refer to the /opt/CPUserCheckPortal/phpincs/conf/L10N/languageCodes.php file.
    • The new UserCheck Portal file in the desired language must be saved in the UTF-8 encoding (if it is saved in the ANSI encoding, it will not be read correctly).

    [Expert@HostName]# cd /opt/CPUserCheckPortal/phpincs/conf/L10N/
    [Expert@HostName]# cp portal_en.php portal_fr.php

  3. Translate the desired attributes inside the new UserCheck Portal file.

    [Expert@HostName]# vi /opt/CPUserCheckPortal/phpincs/conf/L10N/portal_fr.php

    In our example, we localize the "OK" button into French (to appear when the user chooses 'French' in the portal's language drop-down):

    Original
    "BUTTON.OK" => "OK",

    Modified
    "BUTTON.OK" => "OK_text_in_French",


    Notes:

    • The English "OK" button will still be "OK", while the French "OK" button will be "OK_text_in_French", or whatever you choose it to be.
    • The new UserCheck Portal file in the desired language must be saved in the UTF-8 encoding (if it is saved in the ANSI encoding, it will not be read correctly).

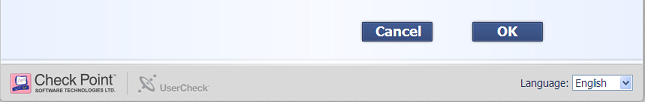

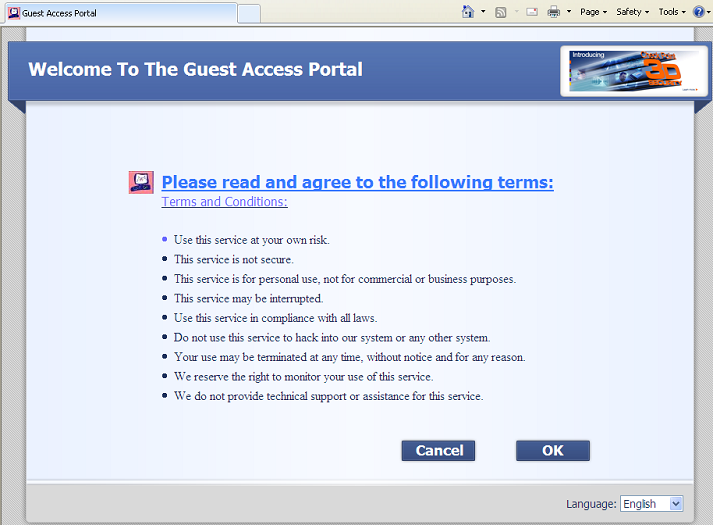

A very quick way to remove Check Point logos is to replace the standard files with "no logo" versions.
In the /opt/CPUserCheckPortal/htdocs/UserCheck/img/ directory, use the files that contain the text "nologo" in their names to overwrite the corresponding files without the "nologo" text. For example, to replace the standard footer logo, copy the footer_nologo.png to footer.png.

Note that the text wraps in the title and message sections in the original, but not in the modified version.

Original
Modified

The following list shows all the "no logo" files that can be used with their associated logo files:

  • footer.png
  • footer_nologo.png

  • footer_ie6.png
  • footer_ie6_nologo.png

  • thin_background.png
  • thin_background_nologo.png

In addition to these files, take a look at other files within the /opt/CPUserCheckPortal/htdocs/UserCheck/img/ directory. If you do not like the standard exclamation point graphic, replace it by creating a new inform.png. Take some time to explore this directory to understand what can be modified.
For example, I had some display issues when adding a custom logo using the UserCheck editor within the SmartDashboard. To resolve this, I just replaced the banner_logo.png file.



(V) Expanding the UserCheck Text Width

Have you found that the UserCheck text display is just too narrow? Do you want to increase it? To change the widths, perform the following:

  1. Edit the /opt/CPUserCheckPortal/phpincs/view/css/UserAction.php file.
  2. Find the class .usercheck_title_class, scroll down a few lines to width settings, and modify the default value of 335px to a value between 335px and 550px.
  3. Find the usercheck_message_class, scroll down a few lines to width settings, and modify the default value of 335px to a value between 335px and 550px.

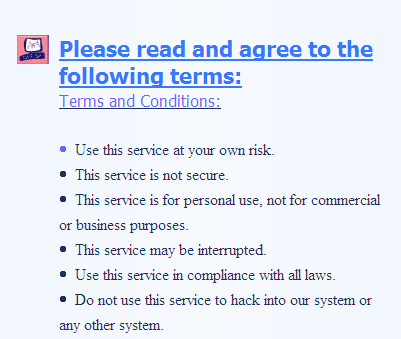

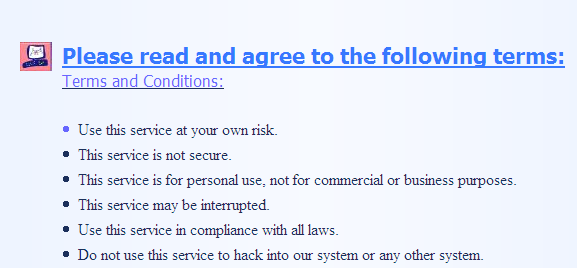

Note that the text wraps in the title and message sections in the original version, but not in the modified version.

Original
usercheck_title_class
{
......
        width: expression( document.body.clientWidth > 334 ? "335px" : "auto" ); /* sets max-width for IE */
        max-width: 335px; /* this sets the max-width value for all standards-compliant browsers */
}

usercheck_message_class
{
......
        width: expression( document.body.clientWidth > 334 ? "335px" : "auto" ); /* sets max-width for IE */
        max-width: 335px; /* this sets the max-width value for all standards-compliant browsers */
        min-width: 335px; /* this sets the max-width value for all standards-compliant browsers */
}

Modified
usercheck_title_class
{
......
        width: expression( document.body.clientWidth > 334 ? "550px" : "auto" ); /* sets max-width for IE */
        max-width: 550px; /* this sets the max-width value for all standards-compliant browsers */
}

usercheck_message_class
{
......
        width: expression( document.body.clientWidth > 334 ? "550px" : "auto" ); /* sets max-width for IE */
        max-width: 550px; /* this sets the max-width value for all standards-compliant browsers */
        min-width: 550px; /* this sets the max-width value for all standards-compliant browsers */
}



(VI) Redirect to Static External .com Web Site

The normal behavior for UserCheck will be to intercept the URL requested by the user, present inform or ask page, then redirect the user to the originally requested URL. This customization will instead always redirect the user to the pre-configured, embedded, web site.

Using Vi editor, modify the following two files (make sure to enclose the URL within quotes):

Note: In the examples below, the user will always be redirected to http://www.checkpoint.com/.

  1. /opt/CPUserCheckPortal/phpincs/view/js/UserAction.php

    Original
    var RedirectToAddr = newViewJSONObj.RedirectToAddr;

    Modified
    var RedirectToAddr = "http://www.checkpoint.com/";

  2. /opt/CPUserCheckPortal/phpincs/web/interceptors/UCCookieInterceptor.php

    Location 1

    Original
    if($data->AutoRedirect == true && $data->RedirectToAddr != "")
    {
            if (!isset($IsThinPortal) )
            {
                    header('Location: ' . $data->RedirectToAddr);
            }
            else
            {
                    header('Location: about:blank');
            }
    }

    Modified
    if($data->AutoRedirect == true && $data->RedirectToAddr != "")
    {
            if (!isset($IsThinPortal) )
            {
                    header('Location: ' . "http://www.checkpoint.com/");
            }
            else
            {
                    header('Location: about:blank');
            }
    }


    Location 2

    Original
    if (!isset($IsThinPortal) )
    {
            if ($REQUEST->getRequestParam("origUrl", $REQUEST->GET_REQ_PARAMS) == null)
            {
                    throw new Exception("origUrl is empty");
            }
            else
            {
                    header('Location: ' . $UTILS::base64url_decode($REQUEST->getRequestParam("origUrl", $REQUEST->GET_REQ_PARAMS)));
            }
    }
    else
    {
            header('Location: ' . "www.closeCheckPointusercheckthinclientpopupmessageurl.com");
    }

    Modified
    if (!isset($IsThinPortal) )
    {
            if ($REQUEST->getRequestParam("origUrl", $REQUEST->GET_REQ_PARAMS) == null)
            {
                    throw new Exception("origUrl is empty");
            }
            else
            {
                    header('Location: ' . "http://www.checkpoint.com/");
            }
    }
    else
    {
            header('Location: ' . "www.closeCheckPointusercheckthinclientpopupmessageurl.com");
    }




(VII) Replacing the Check Point Text in the Browser Tab

To change the page header, the text in the tab, using Vi editor, modify the following three files:

  1. /opt/CPUserCheckPortal/htdocs/UserCheck/PortalMain
    and
    /opt/CPUserCheckPortal/htdocs/UserCheck/PortalMainThin

    Original
    function fatal_error_handler($buffer){
        $error=error_get_last();
        if($error['type'] == 1){
            // type, message, file, line
            $newBuffer='<html><header><title>Check Point UserCheck</title></header>
                        <style<
                        .error_content{

    Modified
    function fatal_error_handler($buffer){
        $error=error_get_last();
        if($error['type'] == 1){
            // type, message, file, line
            $newBuffer='<html><header><title>Guest Access Portal</title></header>
                        <style<
                        .error_content{

  2. /opt/CPUserCheckPortal/phpincs/conf/L10N/portal_en.php

    Original
    <?PHP
    $stringsArray   = array(
    "UC_TITLE" => "Check Point UserCheck",

    Modified
    <?PHP
    $stringsArray   = array(
    "UC_TITLE" => "Guest Access Portal",

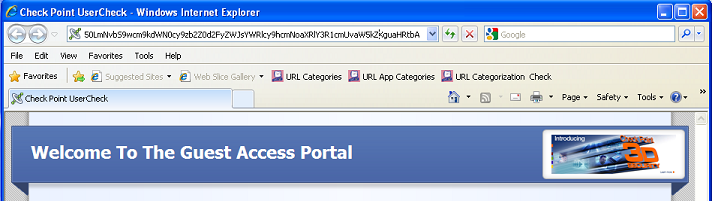

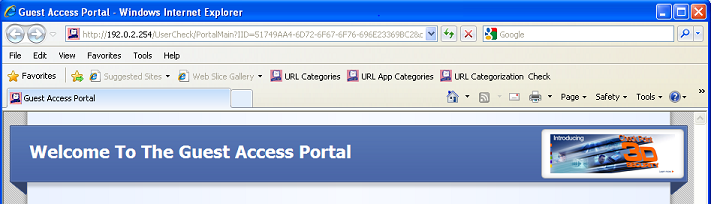

Now the text in the tab changes from "Check Point UserCheck" to "Guest Access Portal" (in this example), or whatever text you choose.



(VIII) Replacing the UserCheck Icon in the Browser Tab and the Address Bar

It is also very simple to change the UserCheck icon in both the tab and on the URL address bar:

  1. Create an icon file (.ico) that uses the desired graphic.

  2. Replace the favicon.ico file in the following locations with your new icon file:

    • /opt/CPUserCheckPortal/htdocs/UserCheck/favicon.ico
    • /opt/CPUserCheckPortal/htdocs/UserCheck/img/favicon.ico

Note: In the examples below, the UserCheck graphic is being replaced with this graphic and the text in the tab is changed from Check Point UserCheck to Guest Access Portal.

Original
Modified



(IX) Changing the background color on the UserCheck pages

The background color is set using a CSS declaration, which can be modified in one of the following ways:

  1. Modify the /opt/CPUserCheckPortal/phpincs/view/css/UserAction.php file:

    Use another image pointer (use *.png), or a specific background color that best fits the customer's needs in the following functions:

    .usercheck_body_background_class
    {
            background: url('<?PHP echo $UTILS->getUrl("sliver_pattern.png", "img"); ?>') repeat scroll center center;
    }

    .usercheck_main_background_class
    {
            background: url('<?PHP echo $UTILS->getUrl("blue_background.png", "img"); ?>') repeat-y scroll center center;
    }

  2. Replace the original image files "sliver_pattern.png" and "blue_background.png" with the customer's image files without changing the CSS file (/opt/CPUserCheckPortal/phpincs/view/css/UserAction.php).
    The image files are located in /opt/CPUserCheckPortal/htdocs/UserCheck/img/ directory:

    [Expert@GW_HostName]# cd /opt/CPUserCheckPortal/htdocs/UserCheck/img/
    [Expert@GW_HostName]# mv sliver_pattern.png sliver_pattern.png_ORIGINAL
    [Expert@GW_HostName]# mv blue_background.png blue_background.png_ORIGINAL
    [Expert@GW_HostName]# cp /path_to_customer_image_files/sliver_pattern.png sliver_pattern.png
    [Expert@GW_HostName]# cp /path_to_customer_image_files/blue_background.png blue_background.png




(X) Removing the HTTP 'GET' parameters from the URL

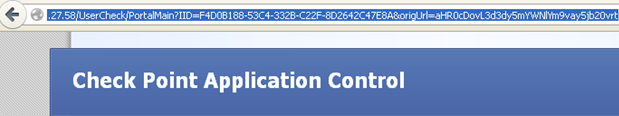

When an incident is caught, by default, the URL is displayed similarly to the following:

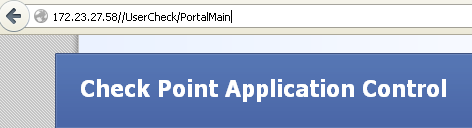

The procedure described below allows for the display only of the URL (without irrelevant HTTP parameters):

Procedure:

  1. Modify the /opt/CPUserCheckPortal/phpincs/view/html/PortalMain.php file.

  2. Search for all occurrences of the string GET_REQ_PARAMS and modify it to GET_POST_REQ_PARAMS:

    Original
    UserCheck.DataObj.IID = <?PHP echo json_encode(htmlspecialchars ($REQUEST->getRequestParam("IID", $REQUEST->GET_REQ_PARAMS))); ?>;

    Modified
    UserCheck.DataObj.IID = <?PHP echo json_encode(htmlspecialchars ($REQUEST->getRequestParam("IID", $REQUEST->GET_POST_REQ_PARAMS))); ?>;

  3. Add a new javascript section:

    ................................
    <body class="usercheck_body_background_class" unselectable="on">
        <noscript>
          <?PHP echo $REQUEST->getL10N()->getStr("NO_SCRIPT");?>
        </noscript>
        <?PHP
          require("view/html/PortalMessageCommon.php");
        ?>

    // START of new SCRIPT section
        <script type="text/javascript">
          function submitForm()
          {
            rePostForm=document.createElement('FORM');
            rePostForm.name='rePost';
            rePostForm.method='POST';
            rePostForm.action= window.location.protocol + "//" + window.location.host + "/" + window.location.pathname;

            IID=document.createElement('INPUT');
            IID.type='HIDDEN';
            IID.name='IID';
            IID.value = <?PHP echo json_encode(htmlspecialchars ($REQUEST->getRequestParam("IID", $REQUEST->GET_REQ_PARAMS))); ?>;
            rePostForm.appendChild(IID);

            origUrl=document.createElement('INPUT');
            origUrl.type='HIDDEN';
            origUrl.name='origUrl';
            origUrl.value= <?PHP echo json_encode(htmlspecialchars ($REQUEST->getRequestParam("origUrl", $REQUEST->GET_REQ_PARAMS))); ?>;
            // alert('The value is: $my_tb.value');
            rePostForm.appendChild(origUrl);
            document.body.appendChild(rePostForm);
            rePostForm.submit();
          }
          <?PHP
          if (array_key_exists('IID', $_GET))
            echo 'submitForm();';
          ?>
        </script>
    // END of new SCRIPT section

        <div id="portal_main_view" class="div_expanded" unselectable="on">
          <table height="100%" width="100%" border="0" cellpadding="0" cellspacing="0" class="">
          ................................




(XI) Other Interesting UserCheck Features

  1. An embedded link can be added that allows a user to click into and display an external page. The user is limited just to this page, and if the user attempts to browse elsewhere, he will be redirected back to the UserCheck portal.

  2. UserCheck can track up to approximately 25,000 users, which is the initial limitation of the kernel table (it can be enlarged if needed).

  3. A user in the UserCheck context (when IDA is disabled) is a cookie set in the browser. If the IP address changes, the user will be the same user, but if the user switches to another device, it is classified as a 'new' user.

  4. The UserCheck message can be created using the HTML language. This can be done by editing a UserCheck object and right-clicking on the message body area, then selecting 'Switch to Text Mode'. This will allow for any HTML language manipulations:
