How to configure IPsec VPN tunnel between Check Point Security Gateway and Azure vWAN Technical Level
Solution

Table of Contents

  • 1. Introduction
  • 2. Lab Diagram
  • 3. Create new vWAN site
  • 4. Check Point Gateway VPN configuration
  • 5. BGP and Routemap Configuration
  • 6. Gateway Interfaces
  • 7.Check Point HA Cluster - vWAN Configuration
  • 8. Verification
  • 9. Related documentations
    10. How to route all internet bound traffic over VPN tunnel

Introduction

Azure Virtual WAN is a networking service that brings many networking, security, and routing functionalities together to provide a single operational interface. These functionalities include branch connectivity, Site-to-site VPN connectivity, remote user VPN (Point-to-site) connectivity, private (ExpressRoute) connectivity, intra-cloud connectivity (transitive connectivity for virtual networks), VPN ExpressRoute inter-connectivity, routing, Azure Firewall, and encryption for private connectivity.

The Virtual WAN architecture is a hub and spoke architecture with scale and performance built-in for branches (VPN/SD-WAN devices), users (Azure VPN/OpenVPN/IKEv2 clients), ExpressRoute circuits, and virtual networks. It enables global transit network architecture, where the cloud-hosted network 'hub' enables transitive connectivity between endpoints that may be distributed across different types of 'spokes'.

This guide provides step by step configuration of VPN from Check Point security gateway to Azure vWAN.

Lab Diagram

Create new vWAN site

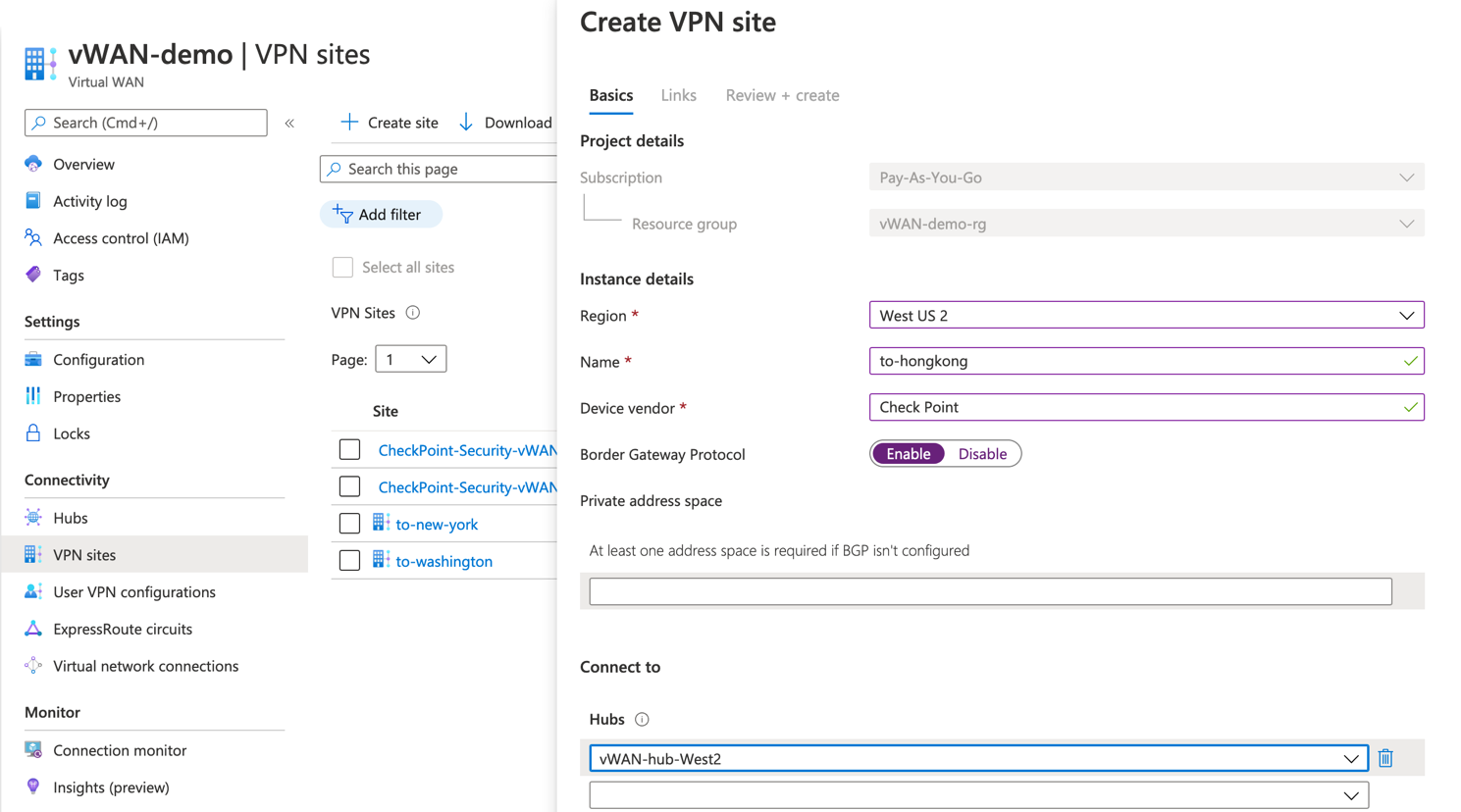

  1. Create Hong Kong site

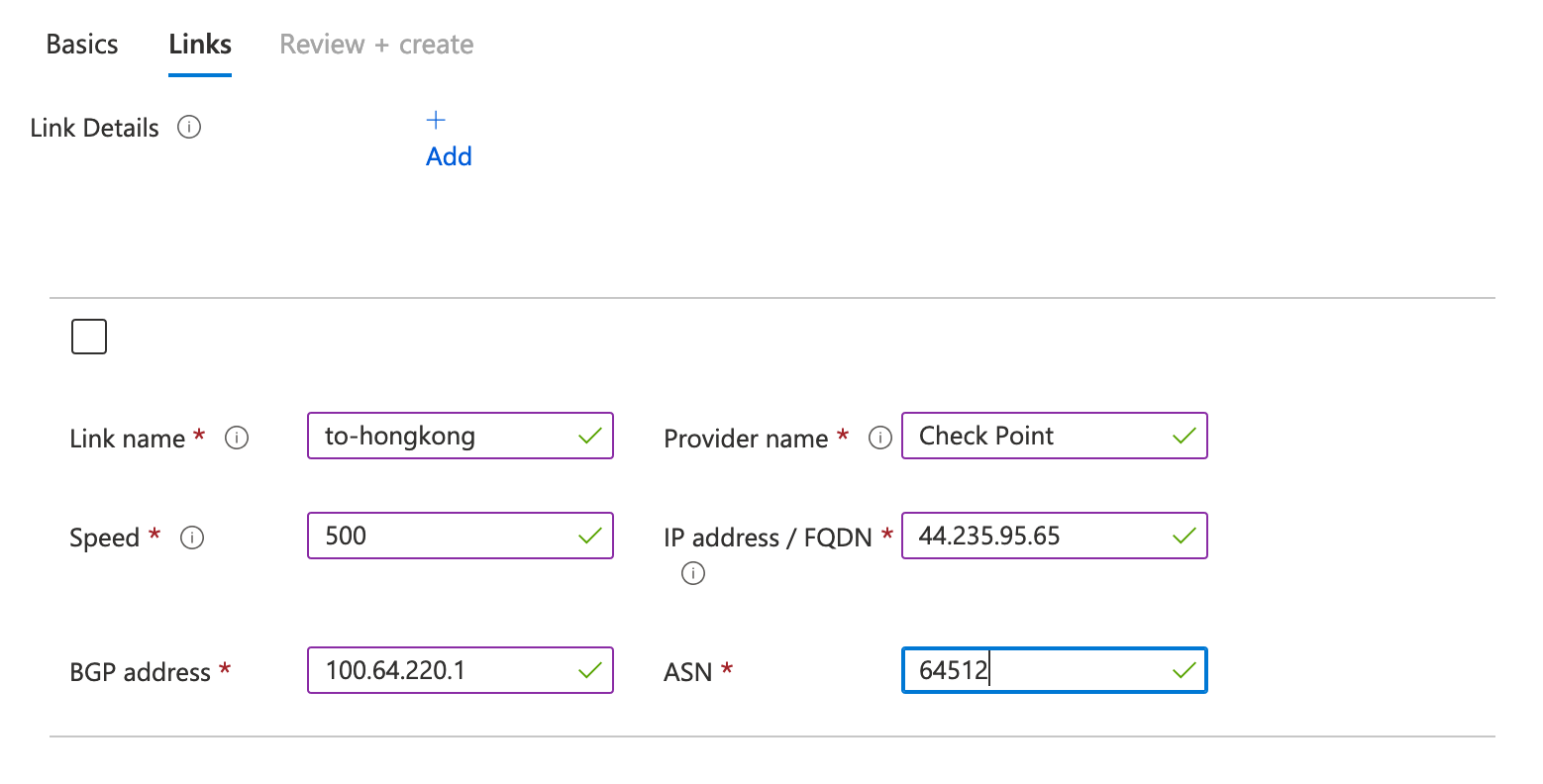

  2. Link details

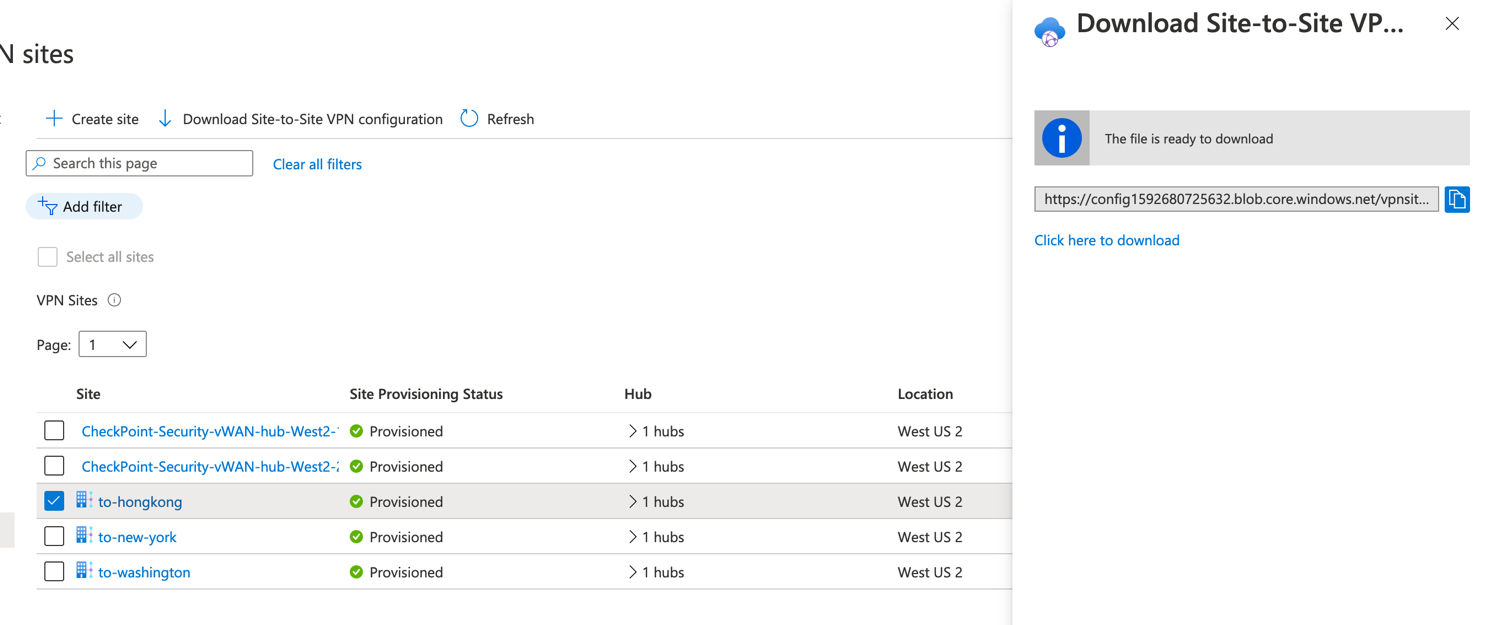

  3. Download the Hong Kong site VPN configuration

  4. Break down of the Hong Kong VPN configuration file

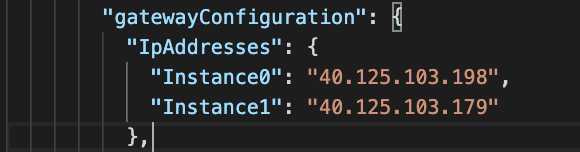

    1. vWAN VPN Gateway address

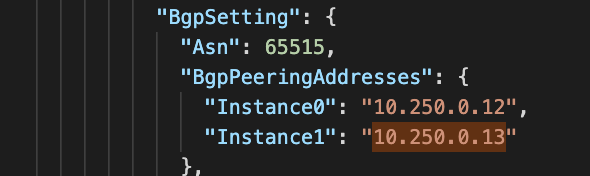

    2. vWAN BGP setting

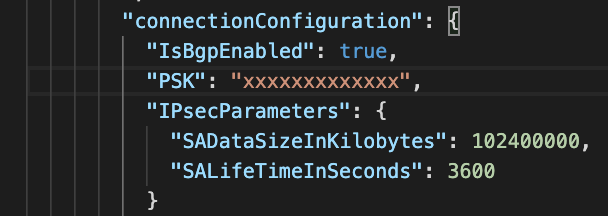

    3. Pre-share key and IPSEC setting

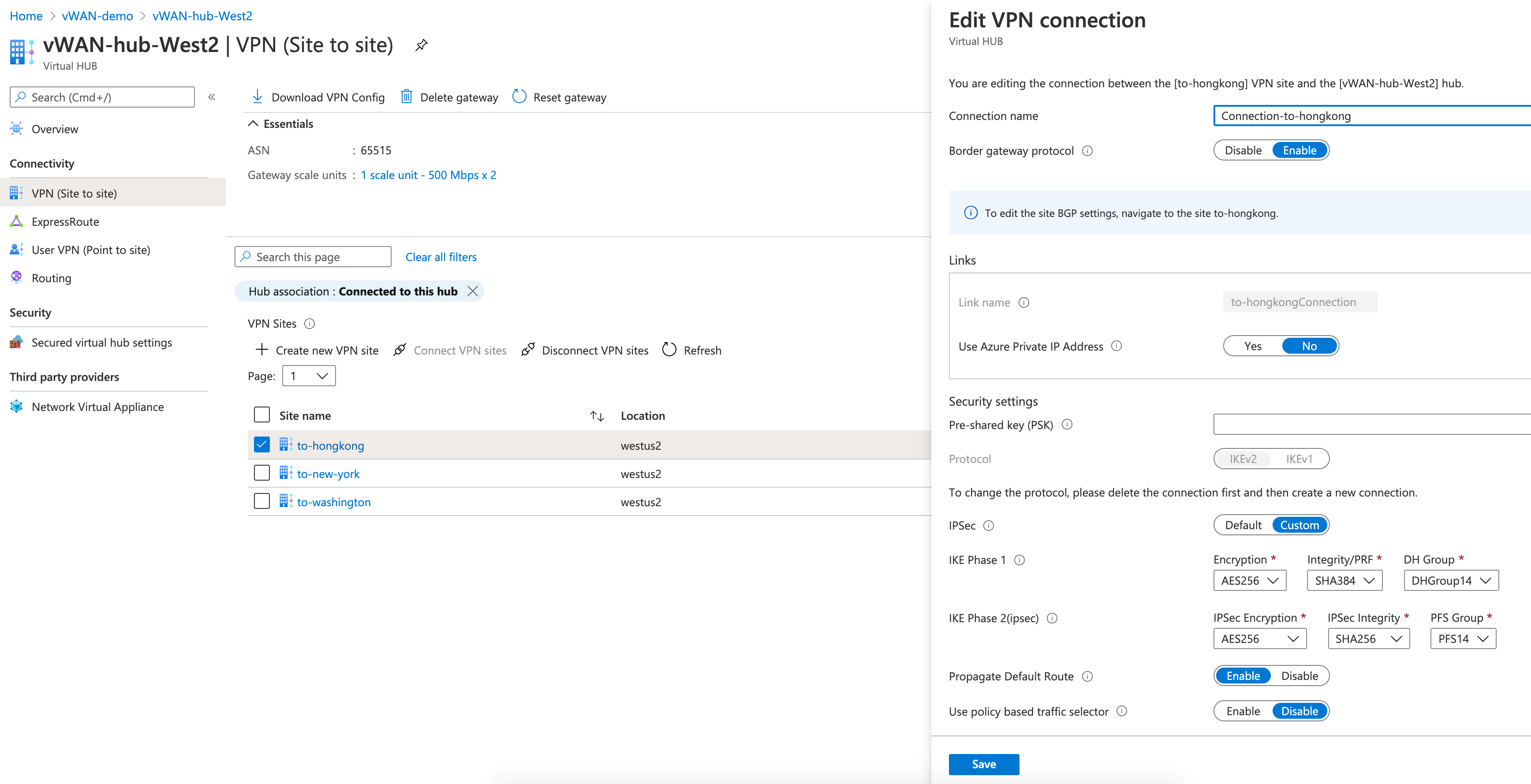

  5. Modify the Site to Site VPN configuration



Check Point Gateway VPN configuration

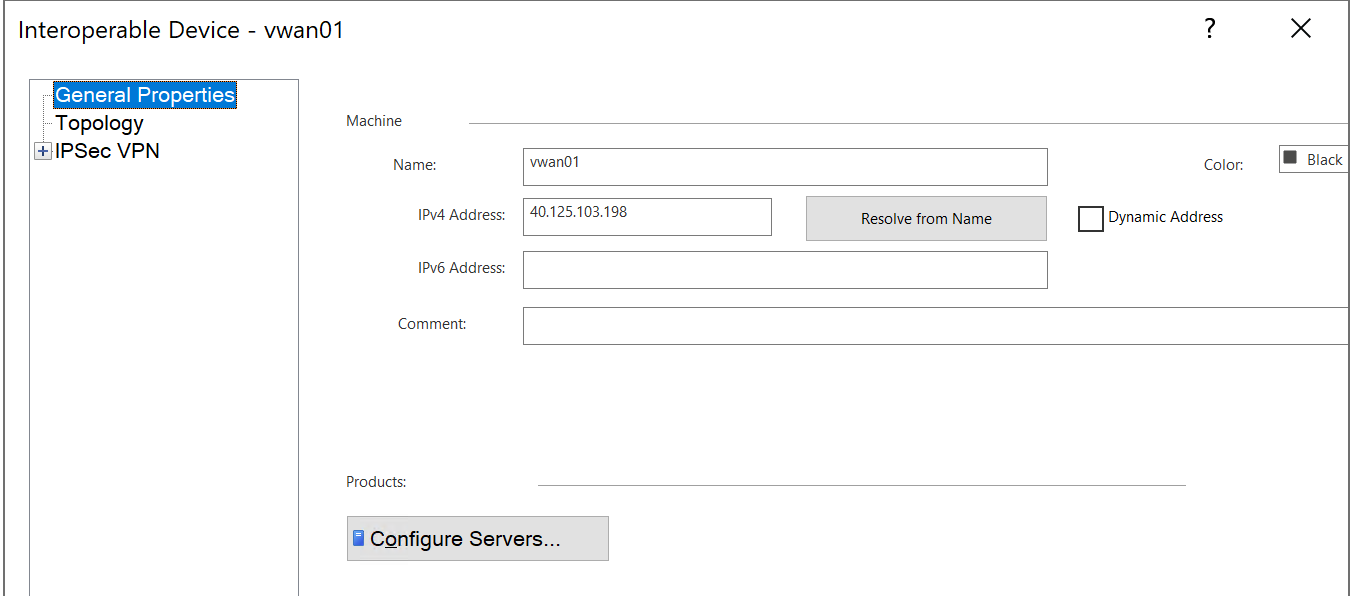

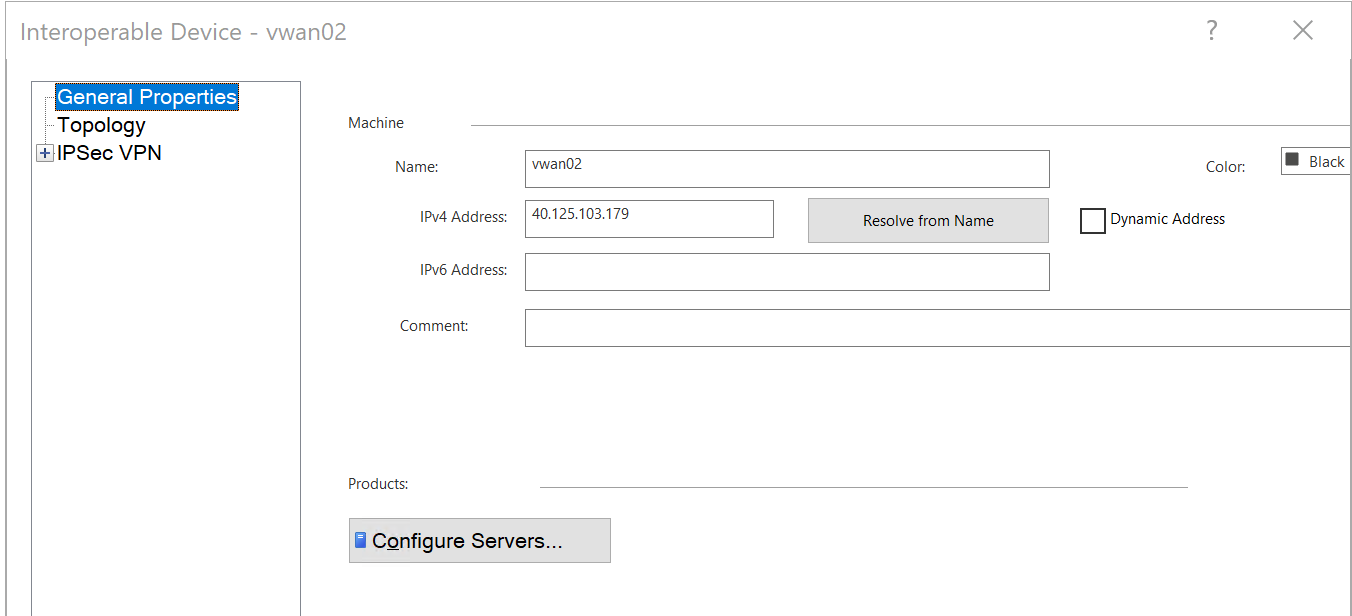

  1. Create 2 x interoperable devices, 1 for each vWAN VPN Gateway

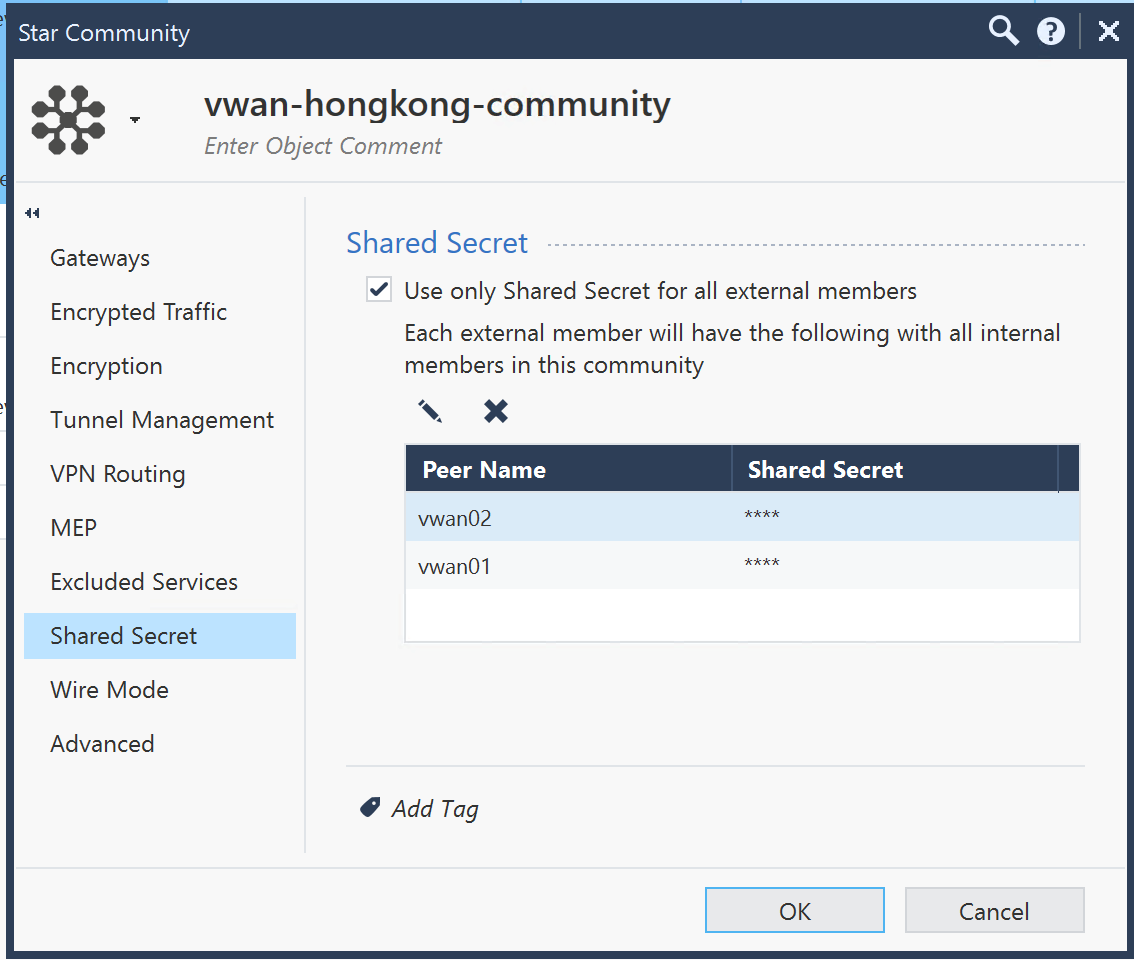

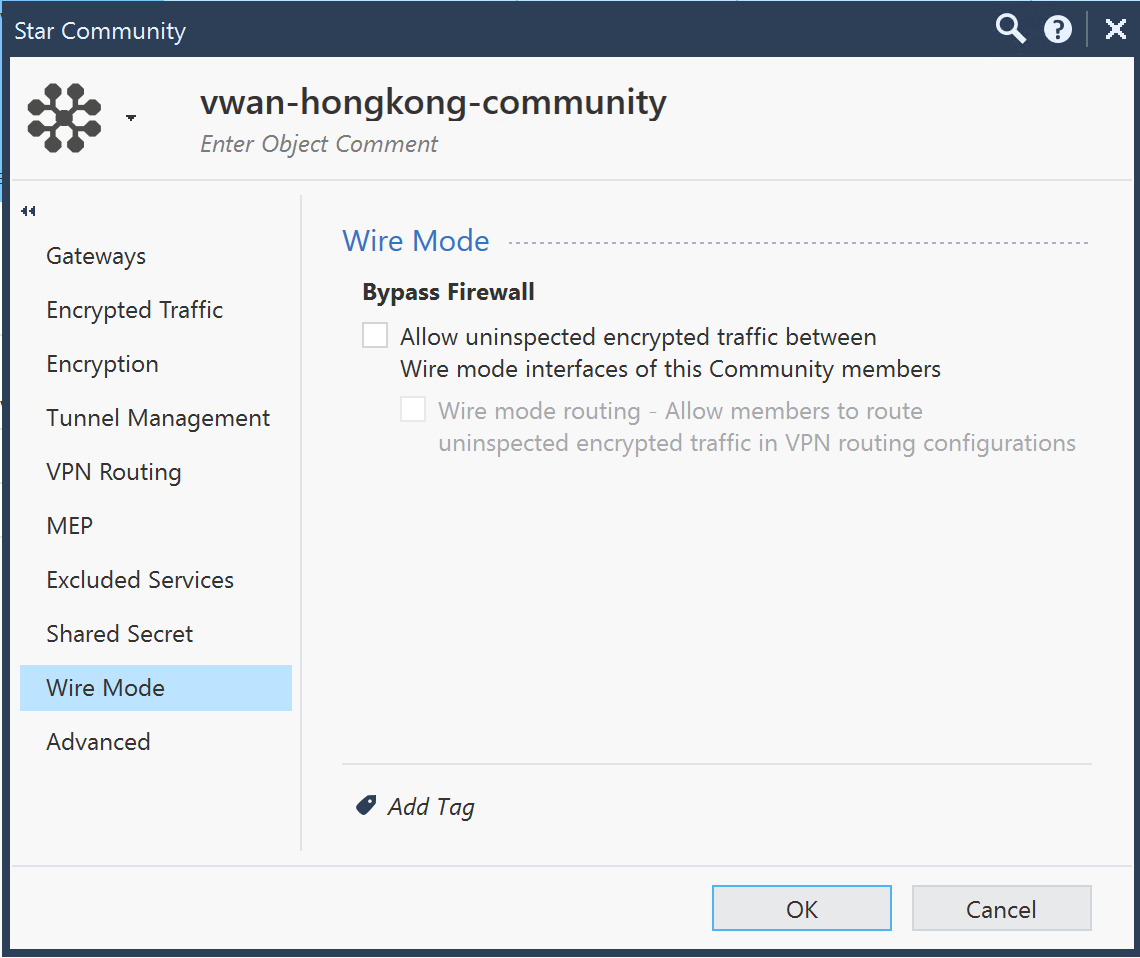

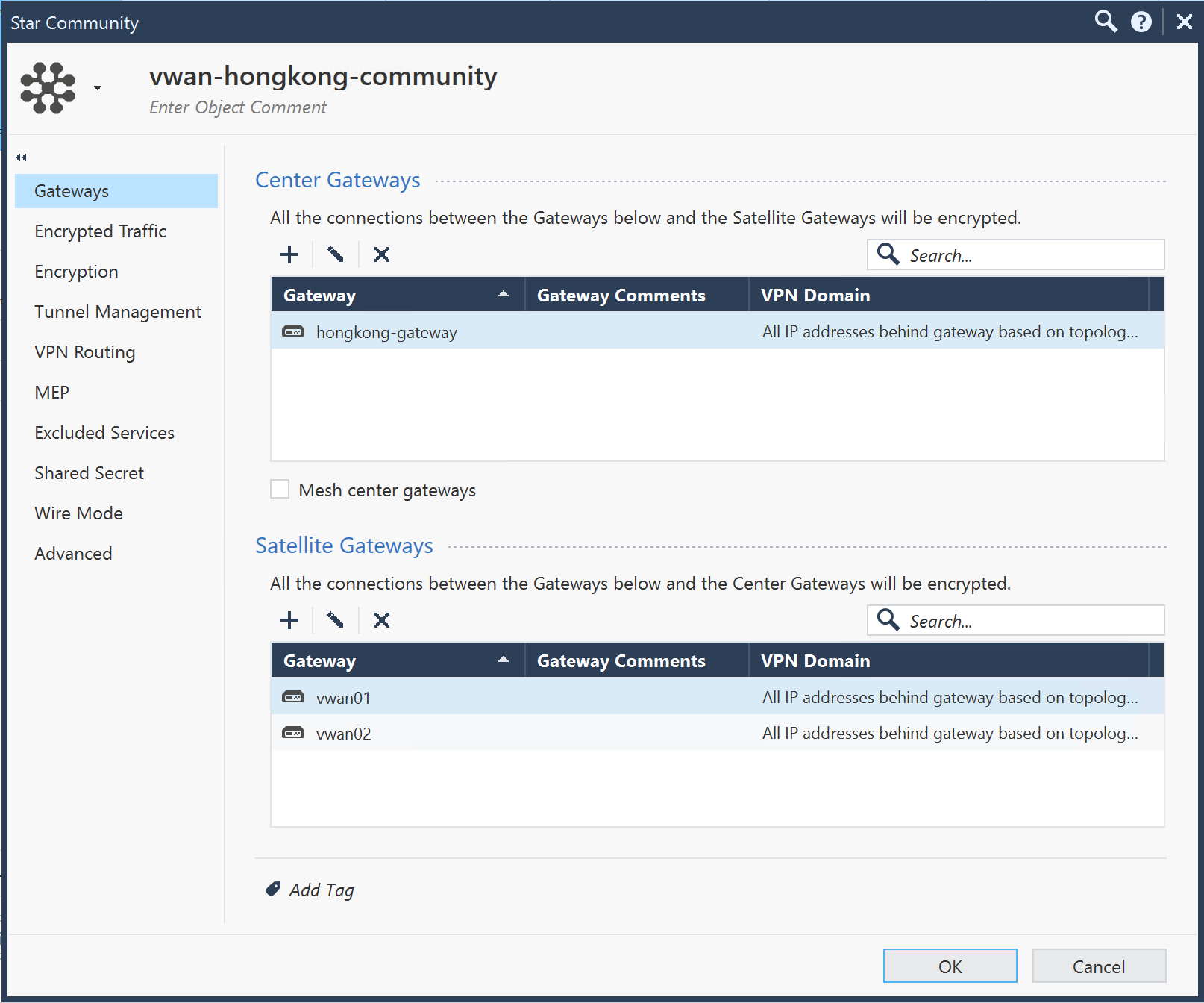

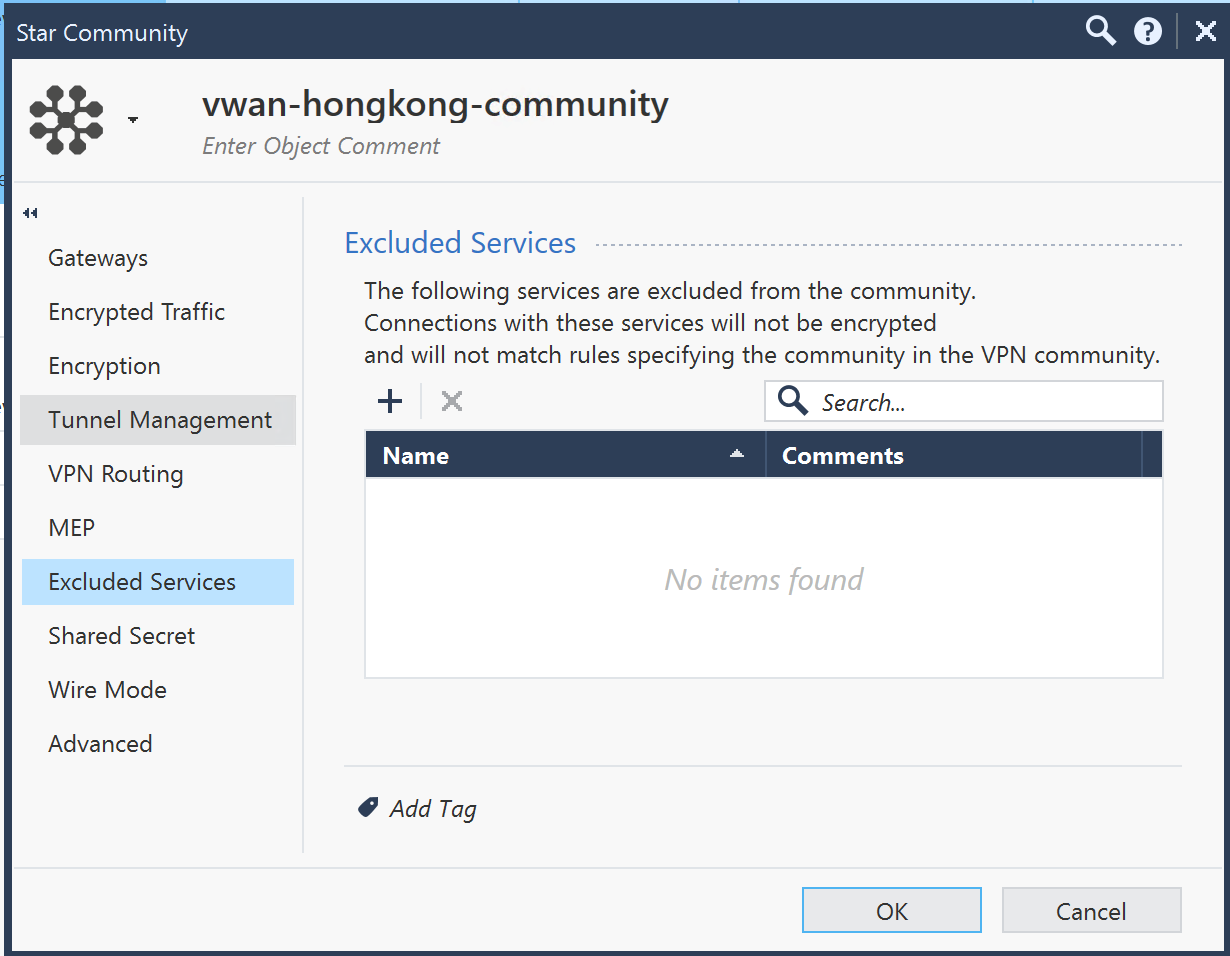

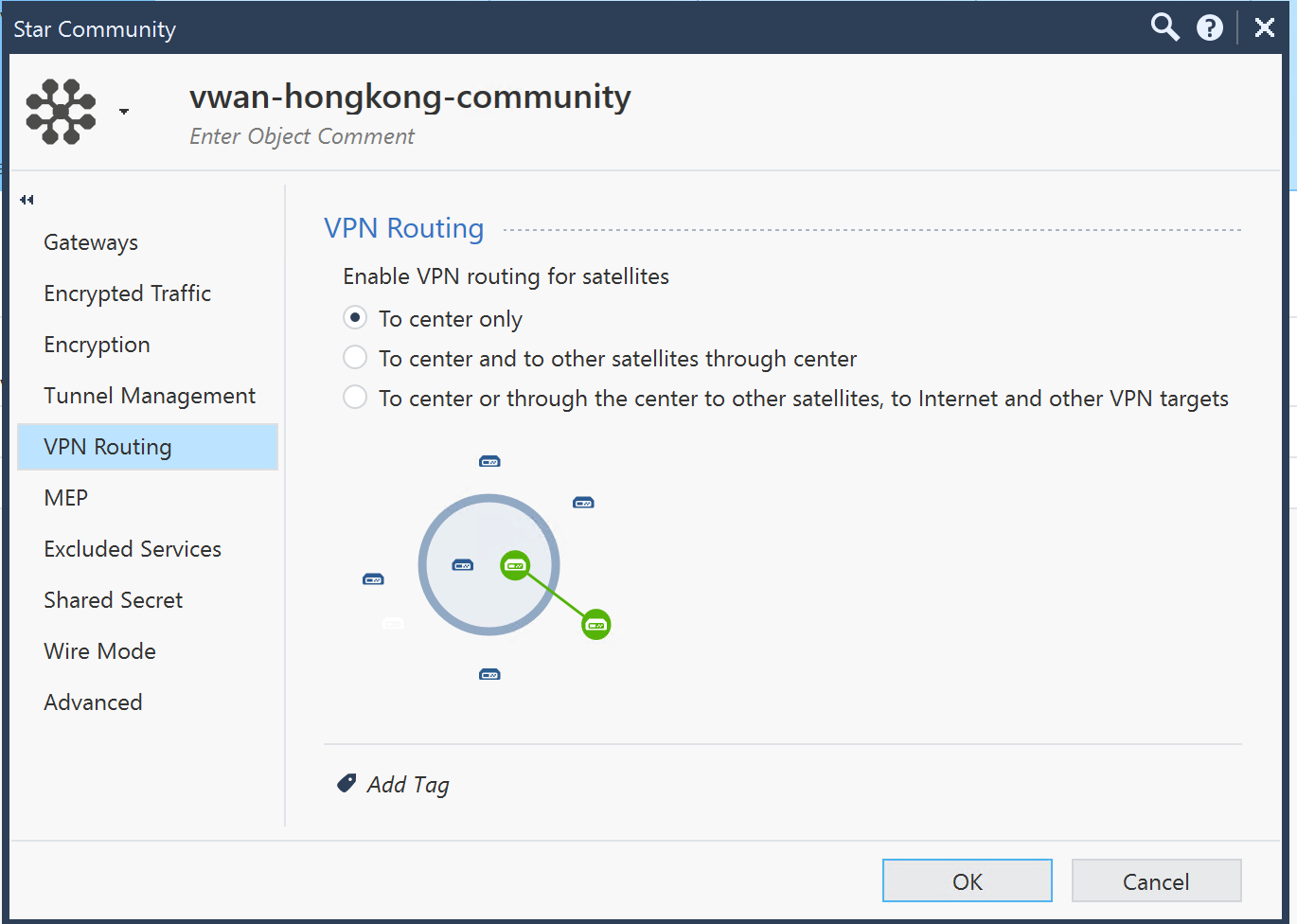

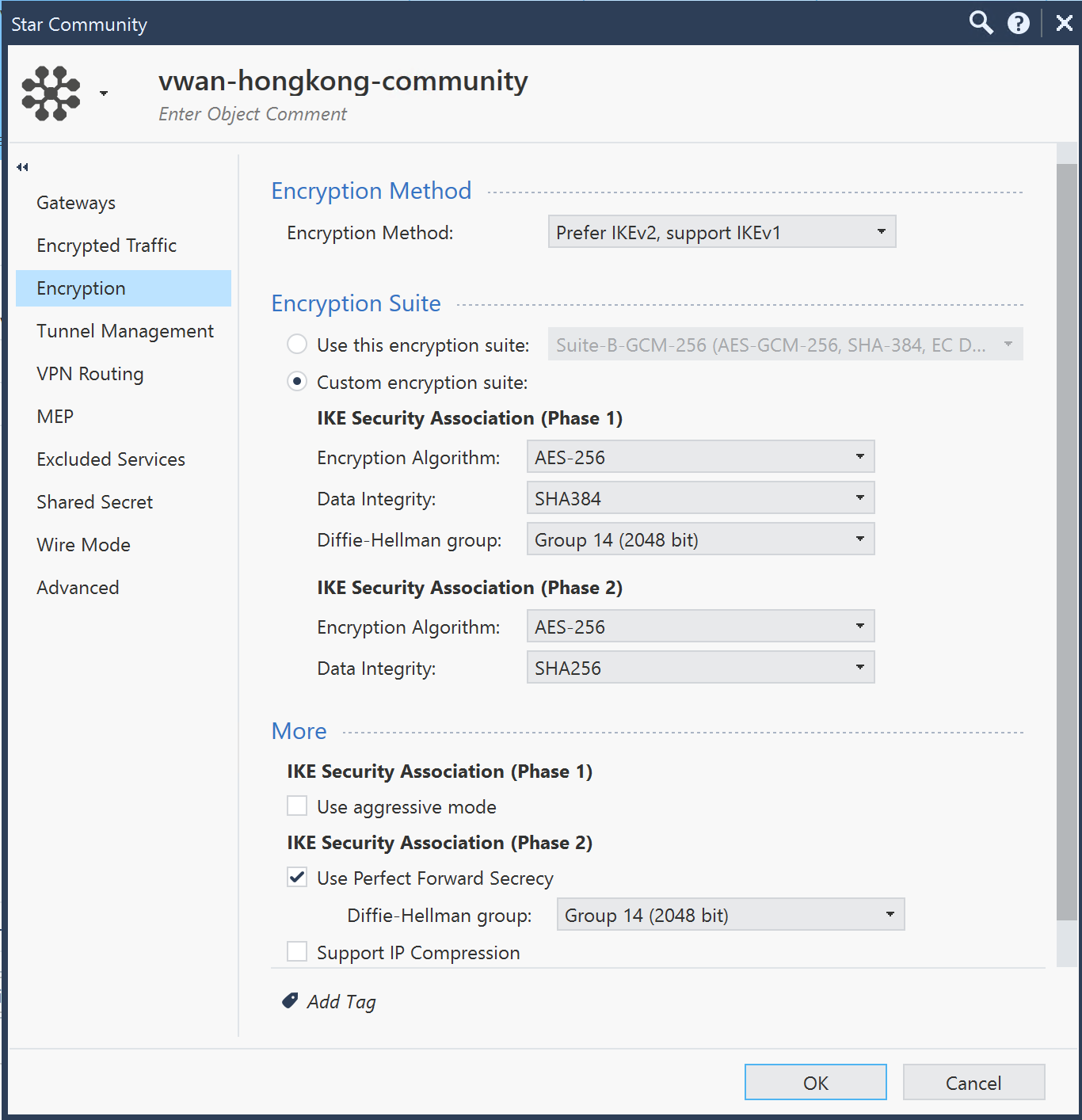

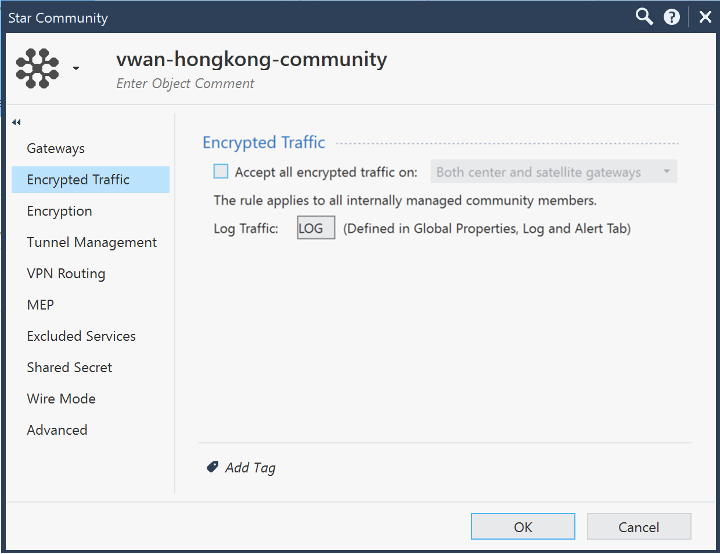

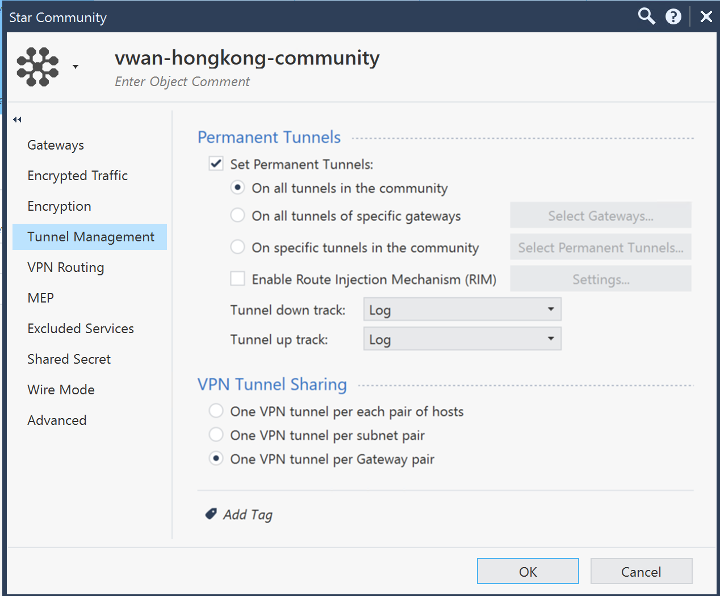

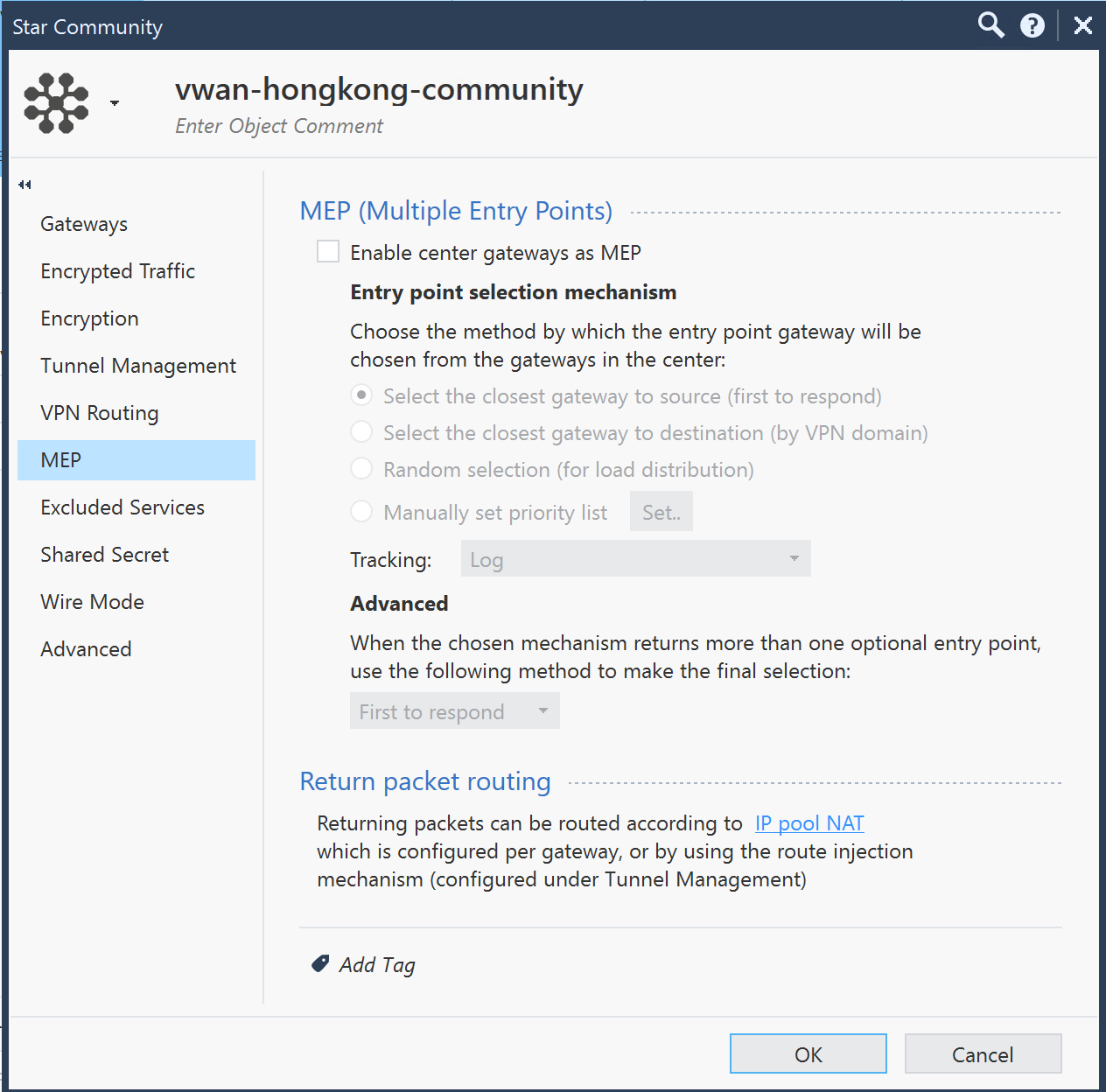

  2. Create VPN Community

  3. Hong Kong gateway configuration

    1. Site Details

      GW IP 44.235.95.65
      Internal Subnet 10.157.2.0/24
      vpnt1 100.64.220.1
      vpnt2 100.64.220.1
      ASN 64512
    2. Gateway Properties

    3. Set encryption domain with empty network object group.

      Note: If you already had a VPN domain configured, you can keep your current configuration. But make sure that hosts and networks that you want to use, or served by, the new VPN connection will not be declared in the VPN domain, particularly if the VPN domain is automatically derived ("Based on Topology information").

    4. Link Selection

      You need to do this step only if gateway is NAT behind an IP address such as Azure HA Clusters. If gateway already has routable IP on it is external interface then you can skip this step.

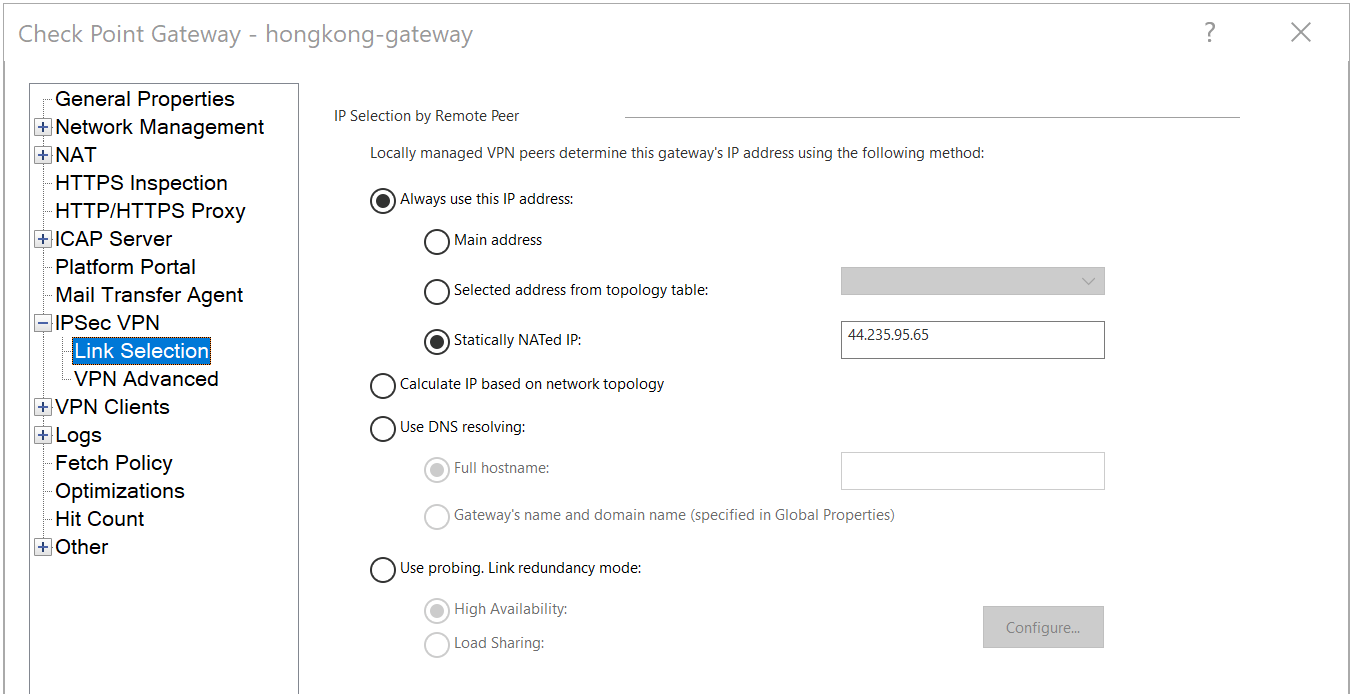

      1. Set statically NATed IP

      2. Outgoing Route Selection -> Setup -> Manual -> Select external interface

  4. Creating firewall rules (required when specifying a community inside the VPN column):

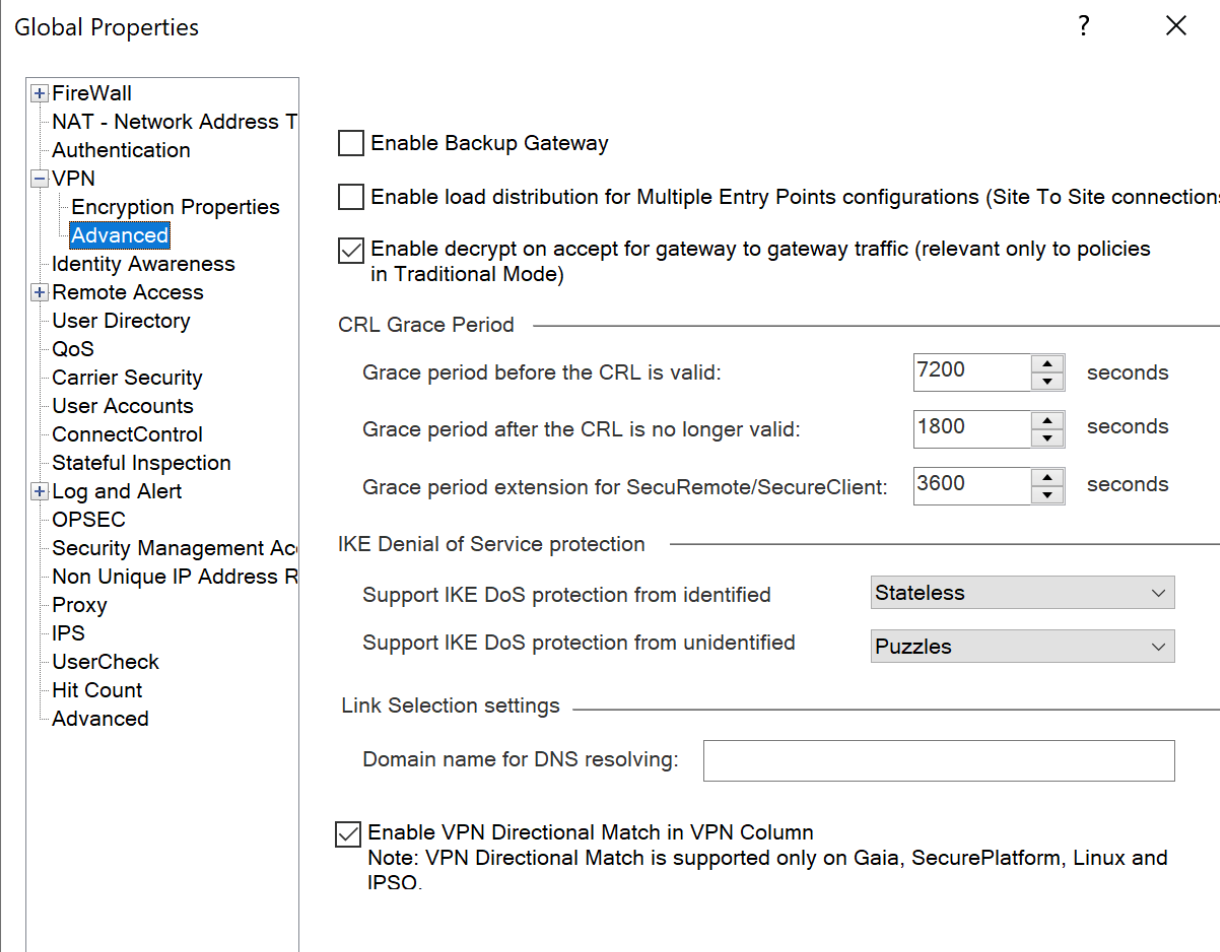

    Open Global Properties, and navigate to VPN > Advanced.

    Check the "Enable VPN Directional Match in VPN Column" checkbox.

    For every firewall rule related to VPN traffic, add the following directional match rules in the VPN column:

    • Internal_clear > VPN community
    • VPN community > VPN community
    • VPN community > Internal_clear

    To create a directional match rule, right-click the VPN cell for the rule and click "Edit Cell". In the VPN Match Conditions window, choose "Match traffic in this direction only". To add directions, click "Add".

    Note: Globally enabling directional match rules in SmartDashboard will not affect previously configured and functioning VPN rules. Those will continue to function as expected.



BGP and Routemap Configuration

Refer to Hong Kong site details and vpn site configuration file for details

10.250.0.12 = vWAN BGP peering address

10.250.0.13 = vWAN BGP peering address

set as 64512
set router-id 100.64.220.1
set bgp ecmp on
set bgp external remote-as 65515 on
set bgp external remote-as 65515 export-routemap "ex_azure" preference 10 on
set bgp external remote-as 65515 import-routemap "im_azure" preference 10 on

set bgp external remote-as 65515 peer 10.250.0.12 on
set bgp external remote-as 65515 peer 10.250.0.12 graceful-restart on
set bgp external remote-as 65515 peer 10.250.0.12 ip-reachability-detection on
set bgp external remote-as 65515 peer 10.250.0.12 ip-reachability-detection check-control-plane-failure on

set bgp external remote-as 65515 peer 10.250.0.13 on
set bgp external remote-as 65515 peer 10.250.0.13 graceful-restart on
set bgp external remote-as 65515 peer 10.250.0.13 ip-reachability-detection on
set bgp external remote-as 65515 peer 10.250.0.13 ip-reachability-detection check-control-plane-failure on



 Export

set routemap ex_azure id 10 on
set routemap ex_azure id 10 allow
set routemap ex_azure id 10 match network 10.156.83.0/24 all
set routemap ex_azure id 10 match protocol bgp
set routemap ex_azure id 10 action metric value 100



 Import

set routemap im_azure id 10 on
set routemap im_azure id 10 allow
set routemap im_azure id 10 match network 0.0.0.0/0 all
set routemap im_azure id 10 match network 10.200.0.0/16 all
set routemap im_azure id 10 match network 10.250.0.0/16 all



 Tunnel Interface

add vpn tunnel 1 type numbered local 100.64.220.1 remote 10.250.0.12 peer vwan01
add vpn tunnel 2 type numbered local 100.64.220.1 remote 10.250.0.13 peer vwan02
set interface vpnt1 state on
set interface vpnt1 mtu 1500
set interface vpnt2 state on
set interface vpnt2 mtu 1500

Note: Please make sure the Azure VPN Gateway name matches the Interoperable device name in SmartConsole. In this case vwan01 and vwan02 are the names we used for both VTI tunnel peers and interoperable device names inside the VPN community.

Gateway Interfaces

  1. Create Required VPN Access Rules

  2. Update Gateway Interfaces

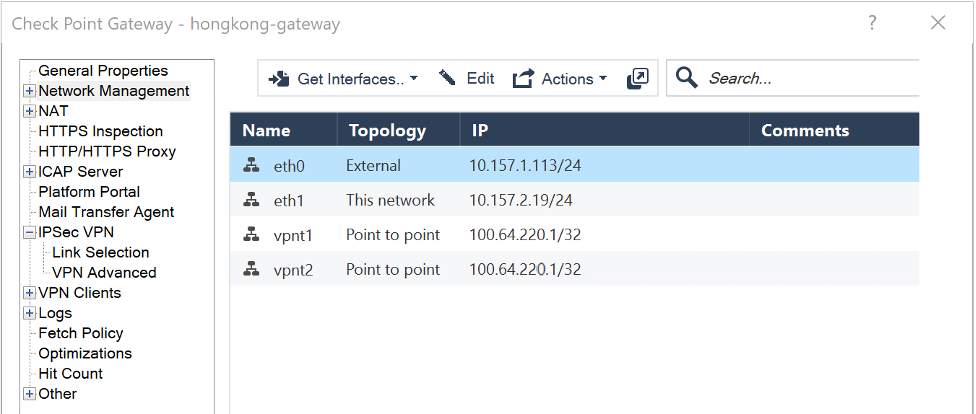

    1. Get interface with topology to detect vpnt1 and vpnt2

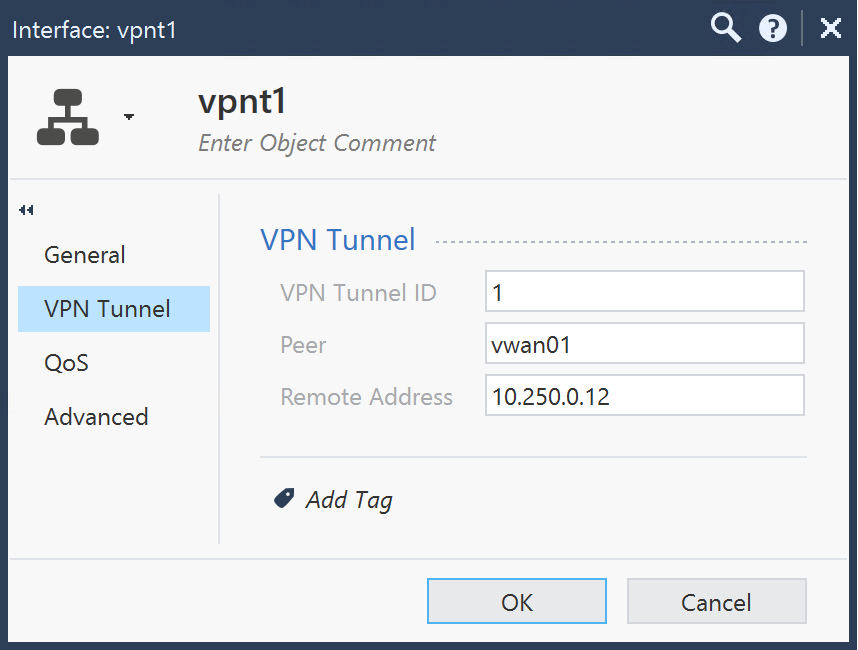

    2. vpnt1 details

    3. vpnt2 details

    4. Install Policy



Check Point HA Cluster - vWAN Configuration

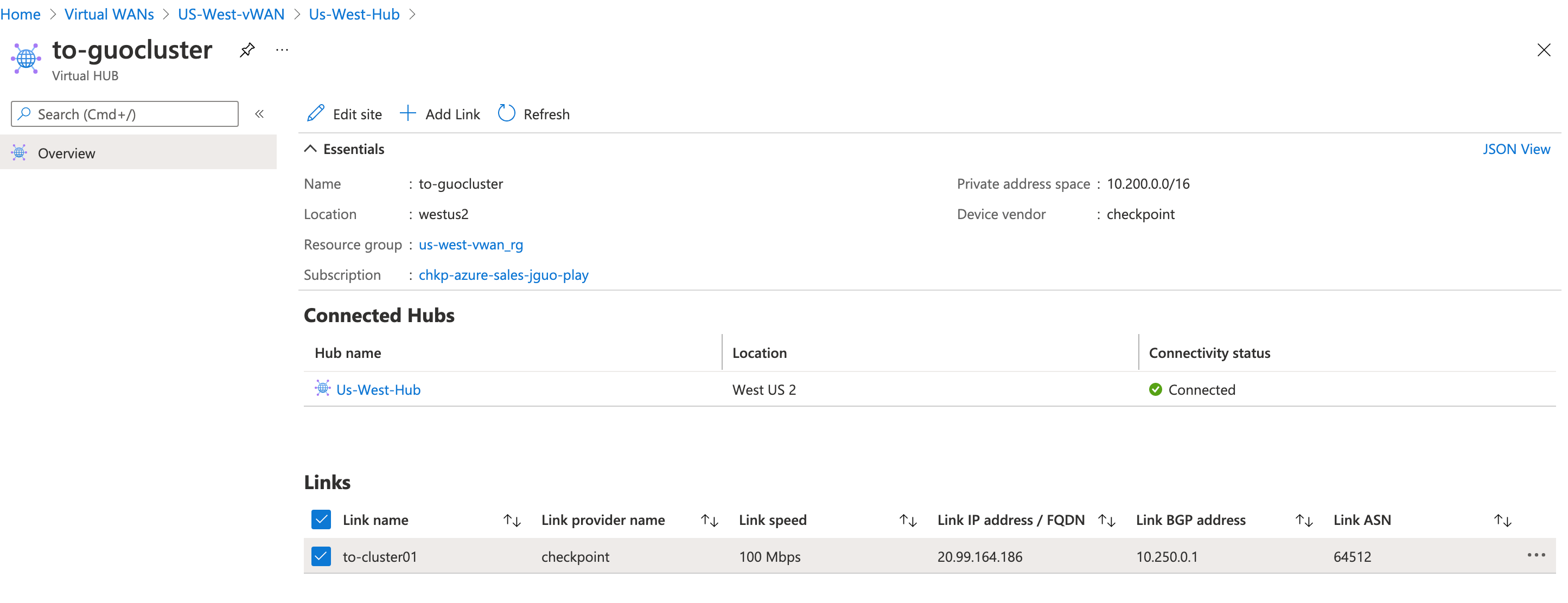

vWAN Hub VPN Gateway Configuration

All other configuration remain the same, follow vWAN steps above

Check Point HA Cluster Configuration

  1. BGP import route map (FW01 and FW02)

    set routemap im_azure id 10 on
    set routemap im_azure id 10 allow
    set routemap im_azure id 10 match network 0.0.0.0/0 all
    set routemap im_azure id 10 match network 10.1.0.0/16 all


  2. BGP Config (FW01 and FW02)

    set as 64512
    set router-id 10.250.0.1
    set bgp ecmp on
    set bgp external remote-as 65515 on
    set bgp external remote-as 65515 export-routemap "ex_azure" preference 10 on
    set bgp external remote-as 65515 import-routemap "im_azure" preference 10 on

    set bgp external remote-as 65515 peer 10.1.0.12 on
    set bgp external remote-as 65515 peer 10.1.0.12 graceful-restart on
    set bgp external remote-as 65515 peer 10.1.0.12 ip-reachability-detection on

    set bgp external remote-as 65515 peer 10.1.0.12 ip-reachability-detection check-control-plane-failure on

    set bgp external remote-as 65515 peer 10.1.0.13 on
    set bgp external remote-as 65515 peer 10.1.0.13 graceful-restart on
    set bgp external remote-as 65515 peer 10.1.0.13 ip-reachability-detection on
    set bgp external remote-as 65515 peer 10.1.0.13 ip-reachability-detection check-control-plane-failure on



  3. VTI interface (FW01)

    add vpn tunnel 1 type numbered local 10.250.0.2 remote 10.1.0.12 peer vwan01
    add vpn tunnel 2 type numbered local 10.250.0.2 remote 10.1.0.13 peer vwan02
    set interface vpnt1 state on
    set interface vpnt1 mtu 1500
    set interface vpnt2 state on
    set interface vpnt2 mtu 1500
    save config

    Note: Make sure the Azure VPN Gateway name matches the Interoperable device name in SmartConsole. In this case vwan01 and vwan02 are the names we used for both VTI tunnel peer and interoperable device names inside the VPN community.

  4. VTI interface (FW02)

    add vpn tunnel 1 type numbered local 10.250.0.3 remote 10.1.0.12 peer vwan01
    add vpn tunnel 2 type numbered local 10.250.0.3 remote 10.1.0.13 peer vwan02
    set interface vpnt1 state on
    set interface vpnt1 mtu 1500
    set interface vpnt2 state on
    set interface vpnt2 mtu 1500
    save config

    Note: Please make sure the Azure VPN Gateway name matches the Interoperable device name in SmartConsole. In this case vwan01 and vwan02 are the names we used for both VTI tunnel peer and interoperable device names inside the VPN community.

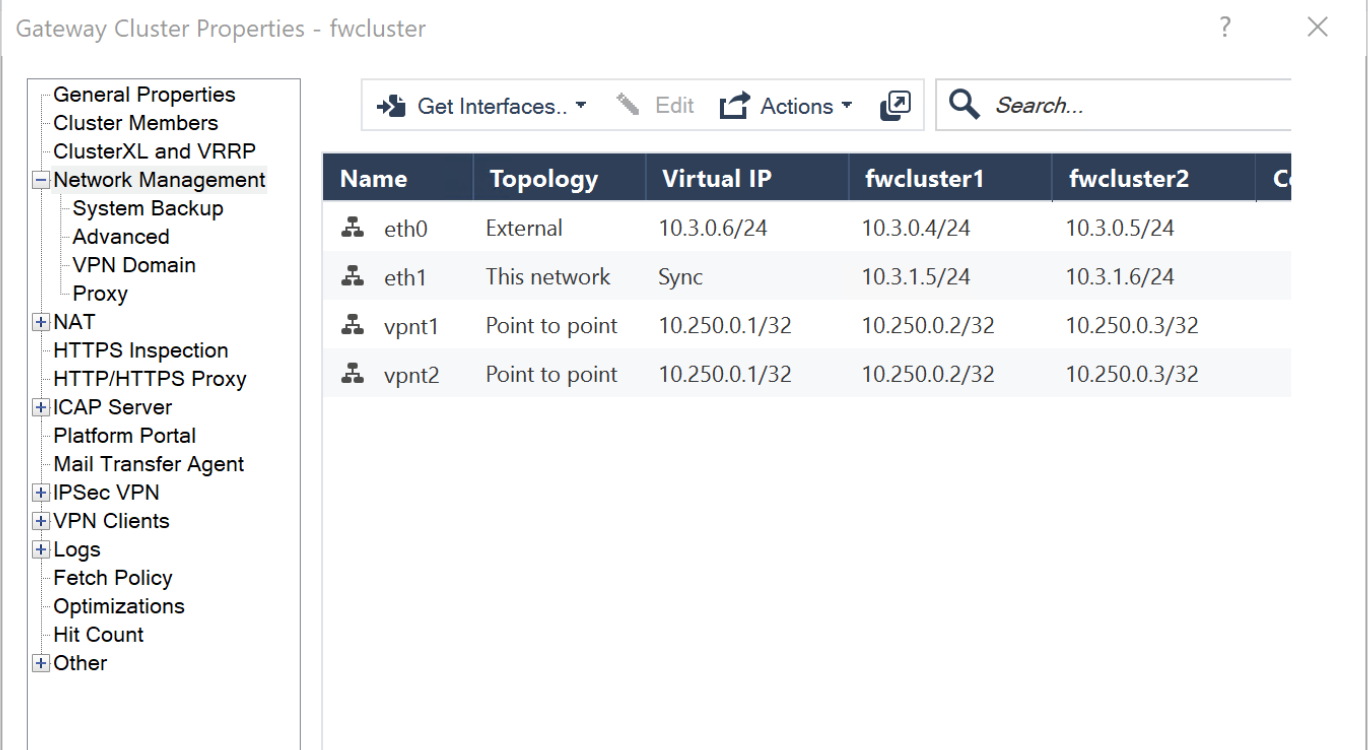

  5. Cluster Interfaces

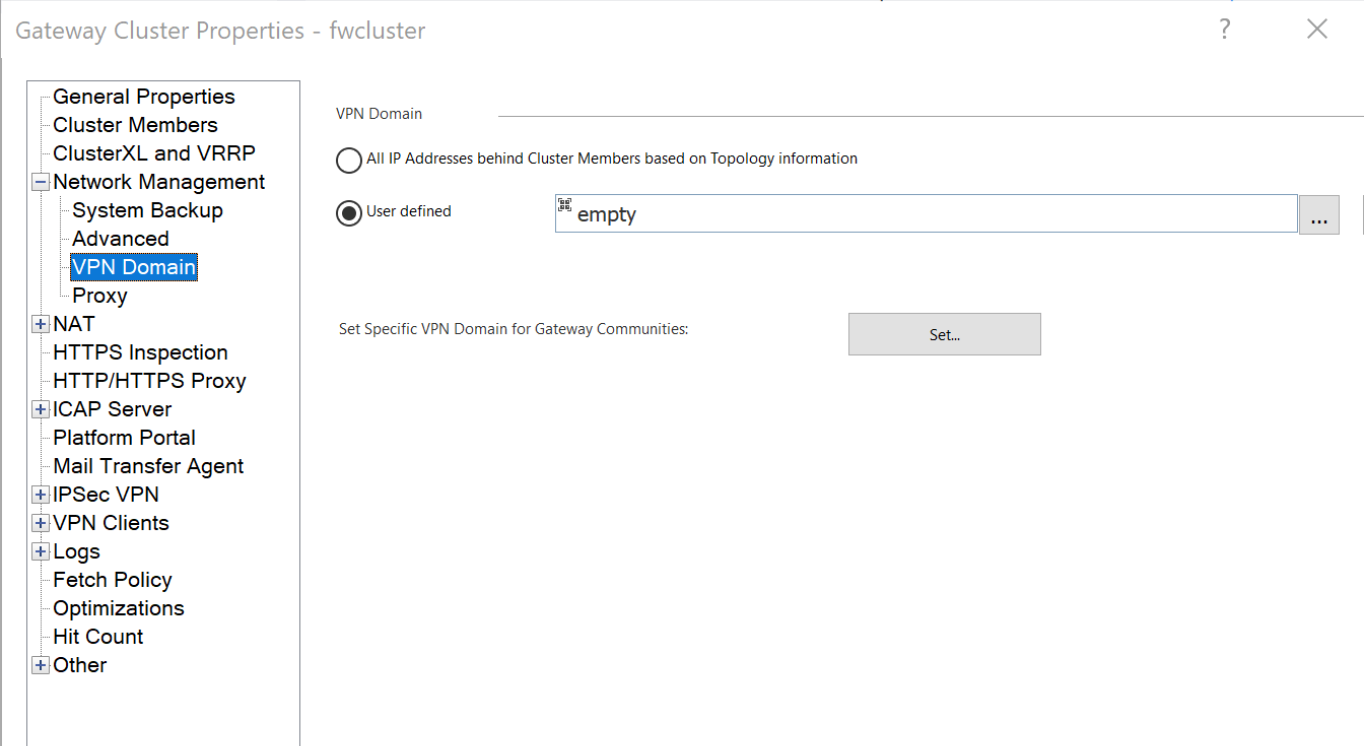

  6. Set encryption domain with empty network object group

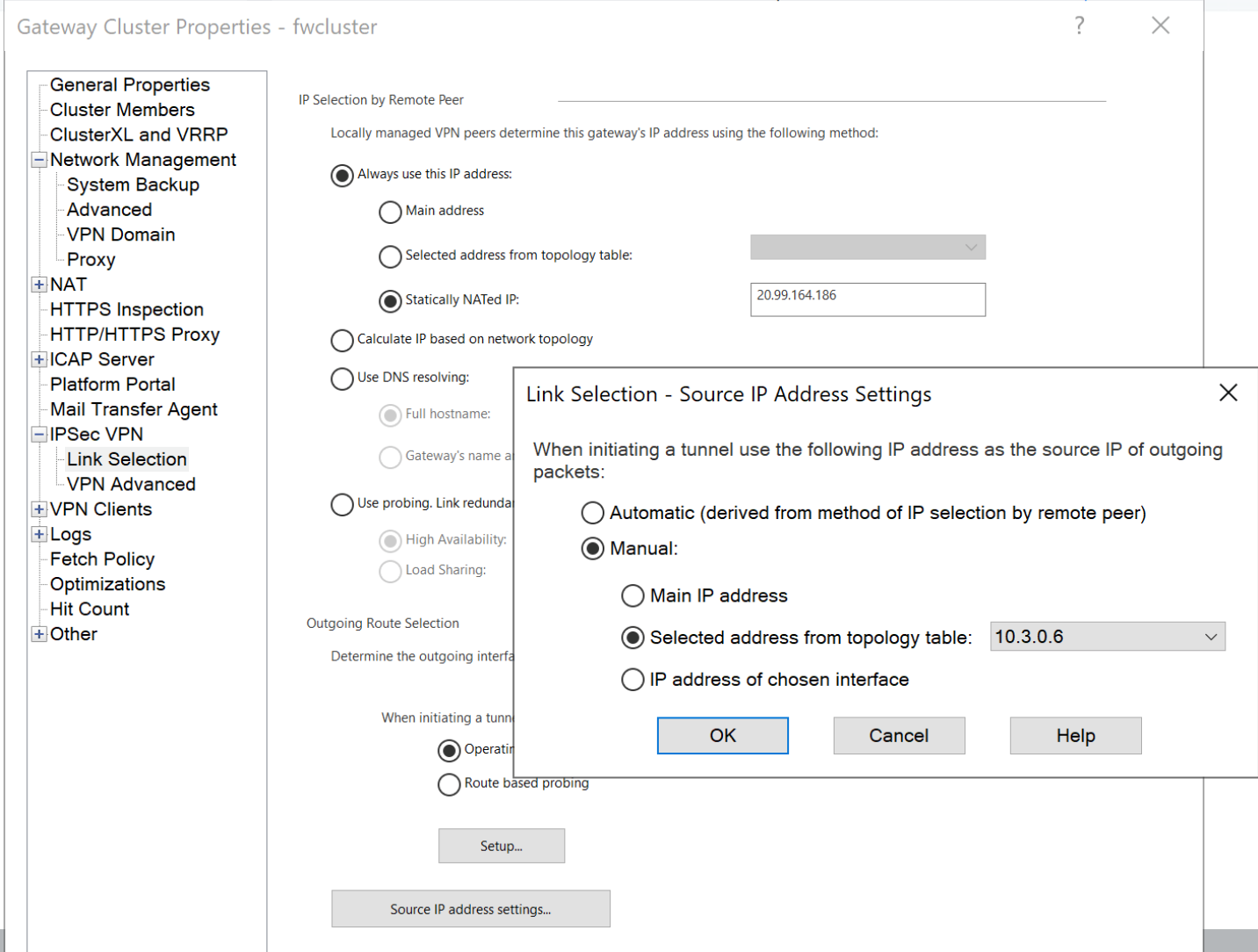

  7. Cluster Link Selection

    You need to do this step only if gateway is NAT behind an IP address such as Azure HA Clusters. If gateway already has routable IP on it’s external interface then you can skip this step.

    a.    Set statically NATed IP
    b.    Outgoing Route Selection -> Setup -> Manual -> Select external interface



  8. All other configurations are the same as single gateway

Verification

  1. VPN status with "vpn tu" command

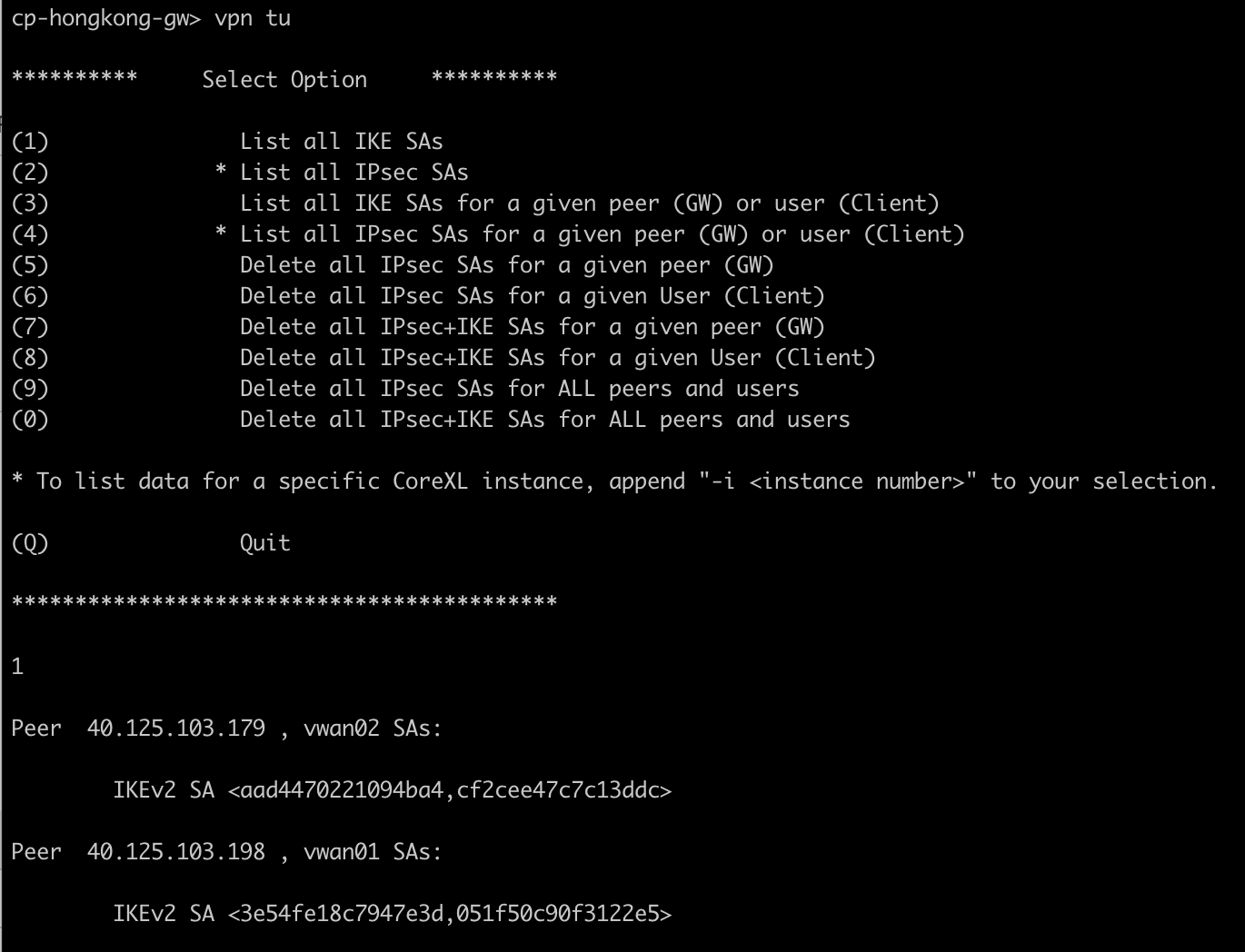

    1. Phase 1

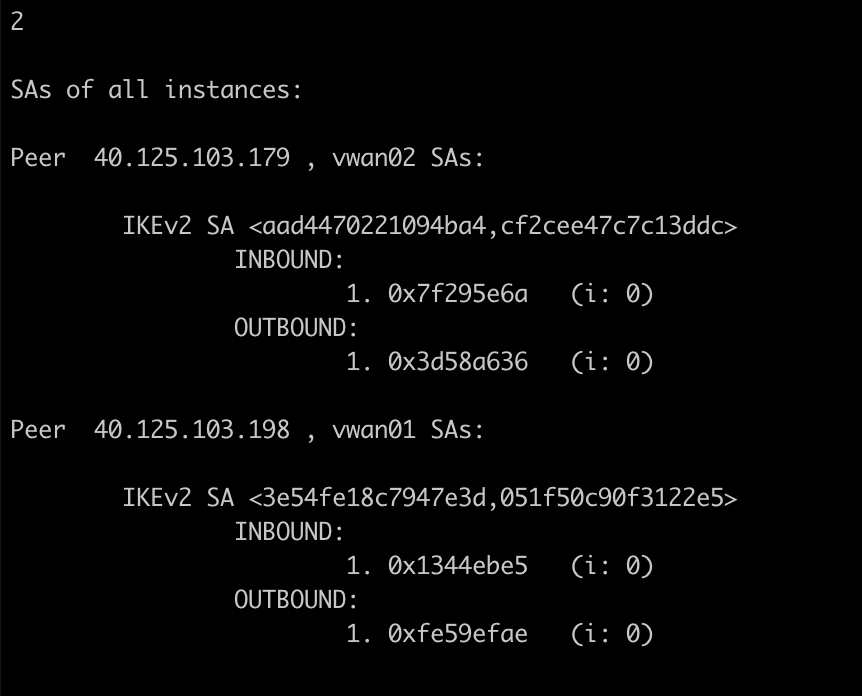

    2. Phase 2

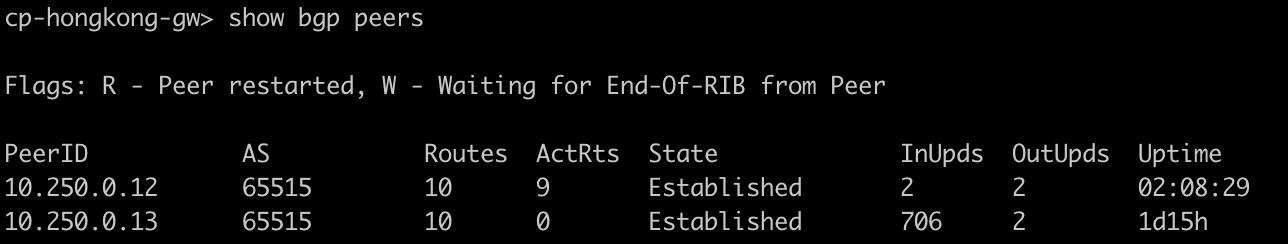

  2. BGP Peers

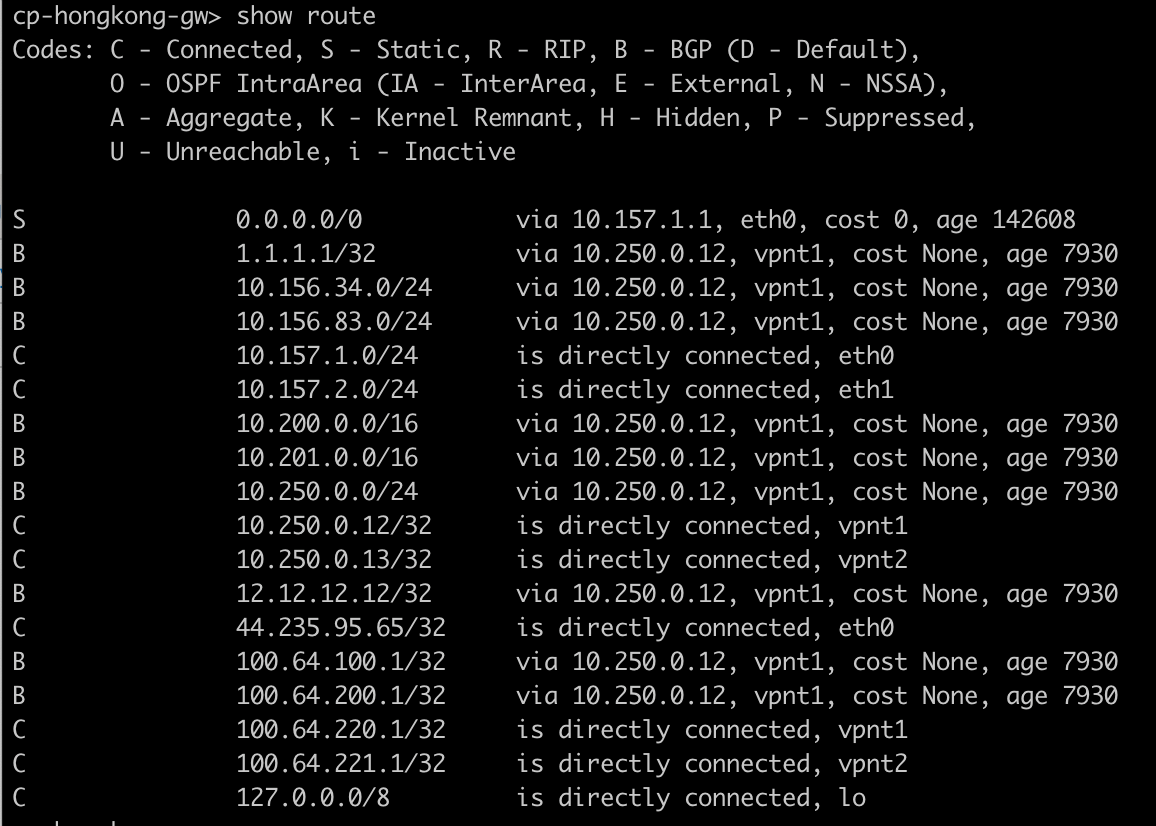

  3. Routes

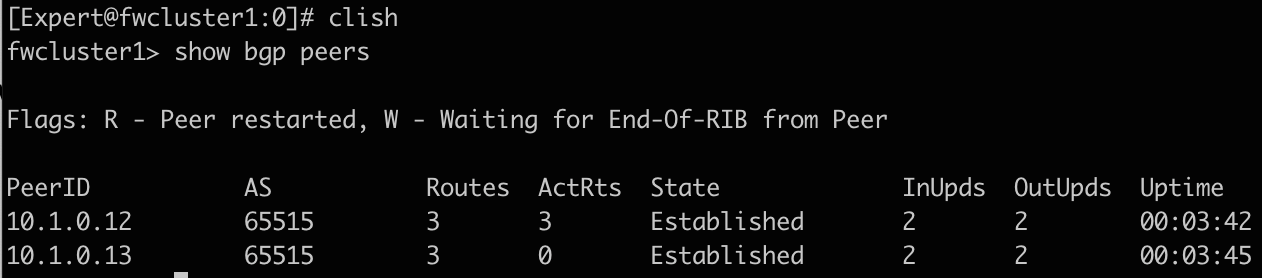

  4. From FW1

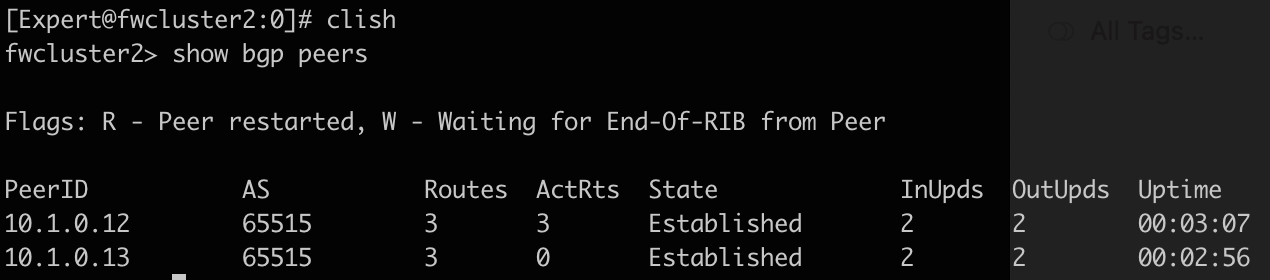

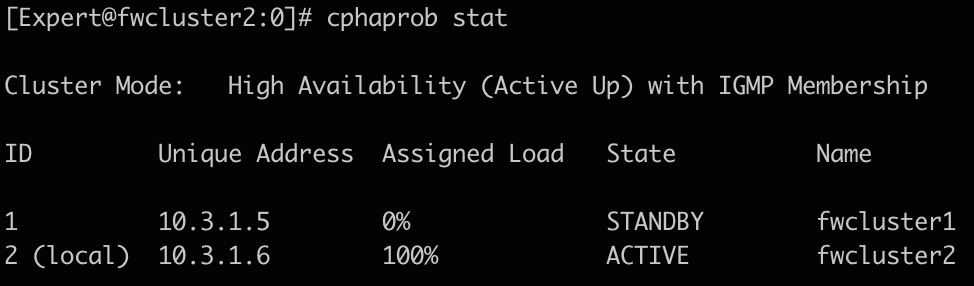

  5. After failover from FW1 to FW2


How to route all internet bound traffic over VPN tunnel:


Azure VPN gateways advertise default route 0.0.0.0/0 via BGP to Check Point gateways. Our default BGP route rank is set to 170 and our default route rank is set to 1, lower rank number has higher priority over BGP route. In order to route all internet traffic over the VPN tunnel we need to set our gateway default gateway rank to 171 so BGP route takes precedence. However, we first need to ensure Azure VPN Gateway IP address and any services that should not be routed over the VPN tunnel has a static route to existing default gateway.



1. Set static route for Azure VPN Gateway address

         set static-route <AZ VGW1 IP/32> nexthop gateway address <Default GW IP> on
         set static-route <AZ VGW2 IP/32> nexthop gateway address <Default GW IP> on
         save config

2. Set gateway default route rank to 171

         set default route rank to 171
         save config

3. Validate


r8110vpngw> show route all
Codes: C - Connected, S - Static, R - RIP, B - BGP (D - Default),
       O - OSPF IntraArea (IA - InterArea, E - External, N - NSSA),
       A - Aggregate, K - Kernel Remnant, H - Hidden, P - Suppressed,
       NP - NAT Pool, U - Unreachable, i - Inactive
B               0.0.0.0/0           via 192.168.0.12, vpnt1, cost None, age 677569
                                    via 192.168.0.13, vpnt2
B            i  0.0.0.0/0           via 192.168.0.13, vpnt2, cost None, age 770672
S            i  0.0.0.0/0           via 10.15.15.1, eth0, cost 0, age 1385696



Big thanks to Chris Suri from Sapphire.net, Dan Morris and Christian Castillo from Check Point that contributed to this SK.
This solution has been verified for the specific scenario, described by the combination of Product, Version and Symptoms. It may not work in other scenarios.
