GRE tunnels stop working and packets are dropped when Hide NAT is used
Symptoms
  • When using Hide NAT with GRE tunnel, packets going through this GRE tunnel may get dropped.

  • Topology example:


    Example of the NAT rule and its zdebug output:


    [Expert@Gateway:0]# fw ctl zdebug drop | grep 192.168.60.2 ...[cpu_1];[fw4_2];fw_log_drop_ex: Packet proto=47 10.15.15.2:0 - > 192.168.60.2:2048 dropped by fw_first_packet_xlation Reason: NAT rulematch failed; ...[cpu_1];[fw4_2];fw_log_drop_ex: Packet proto=47 10.15.15.2:0 - > 192.168.60.2:2048 dropped by fw_first_packet_xlation Reason: NAT rulematch failed; ...[cpu_1];[fw4_2];fw_log_drop_ex: Packet proto=47 10.15.15.2:0 - > 192.168.60.2:2048 dropped by fw_first_packet_xlation Reason: NAT rulematch failed; ...[cpu_1];[fw4_2];fw_log_drop_ex: Packet proto=47 10.15.15.2:0 - > 192.168.60.2:2048 dropped by fw_first_packet_xlation Reason: NAT rulematch failed;
Cause

Check Point supports GRE NAT only for PPP (see sk60793 - Configuring Security Gateways to allow connection to PPTP server while using Hide-NAT (GRE and Hide-NAT support)

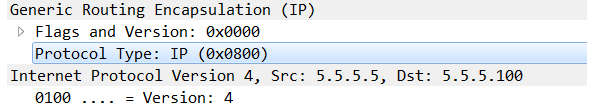

If this is not PPP type, for example:


The Security gateway will only do NAT for GRE in the first packet. If there is another connection with the same NAT, the gateway will try to see if there is already a link for the back connection. (If there is a link, the packet is dropped.)

In R80.20, there was a problem with GRE because the NAT rulebase was run twice (unlike in older versions).
On the first run, the link was not found, and then the link for the back connection was created.
On the second run, a link was found, and consequently, the packet was dropped.


Solution
Note: To view this solution you need to Sign In .
