How to generate and install a 3rd party IPSec Certificate Technical Level

Generate and install a third-party IPSec Certificate

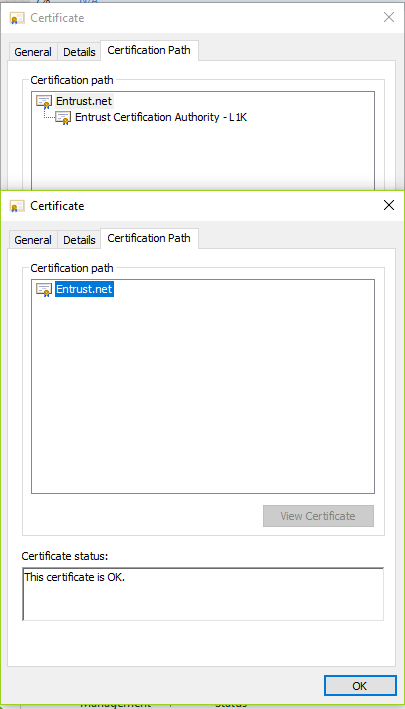

  1. Check with your Certificate Authority and get the CA (root) certificate and the intermediate certificate. For instance: if the third-party Trusted Certificate is from Entrust get the Root and Intermediate Certificates first.

  2. As you can see, the Root is and the Intermediate is Entrust Certificate Authority – L1K. Accordingly, we will install the Root Certificate as a Trusted CA and the Intermediate Certificate as a Subordinate CA.

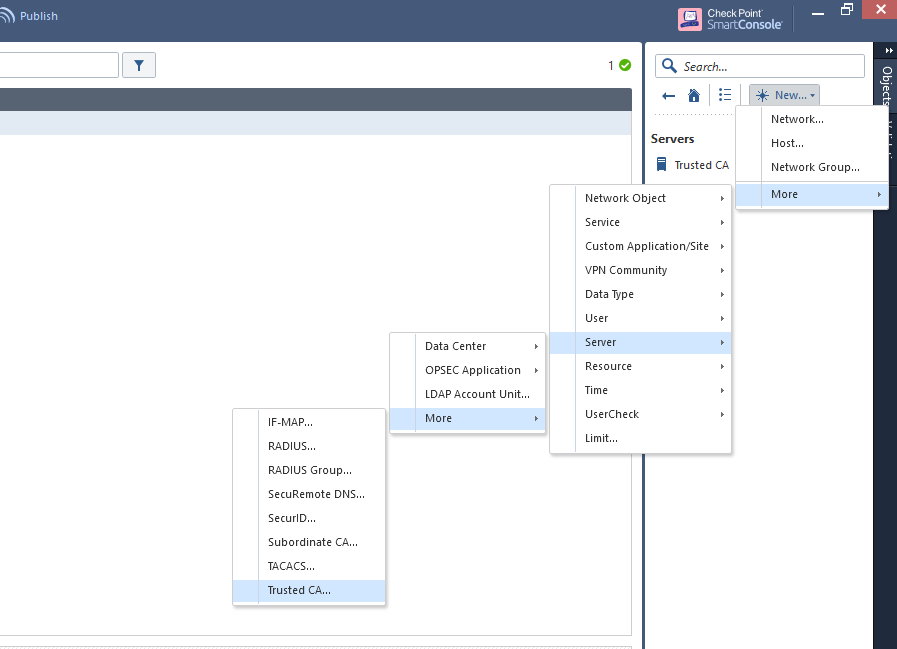

  3. Go to SmartDashboard. Click on *New and then click on More.  Find the Server option, click on More, and choose Trusted CA.

  4. After you choose Trusted CA, a dialog box appears.

  5. Give the Trusted CA a name (for example: Root CA or GodaddyCA).

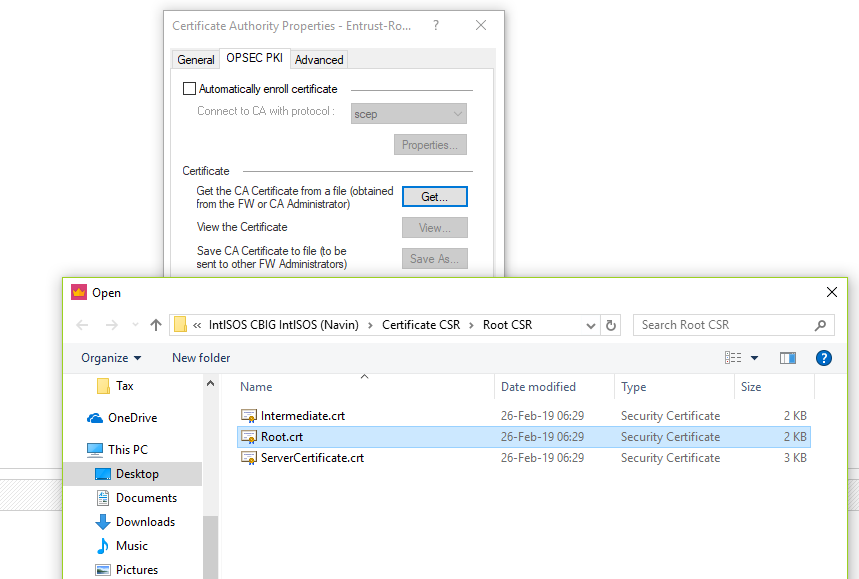

  6. Select the OPSEC PKI option and click on GET.

  7. A Windows dialog box appears. Choose the desired Root CA certificate.

  8. After you choose the certificate, you are prompted to accept the certificate, as seen below:

  9. Install the Intermediate Certificate as a Subordinate CA.

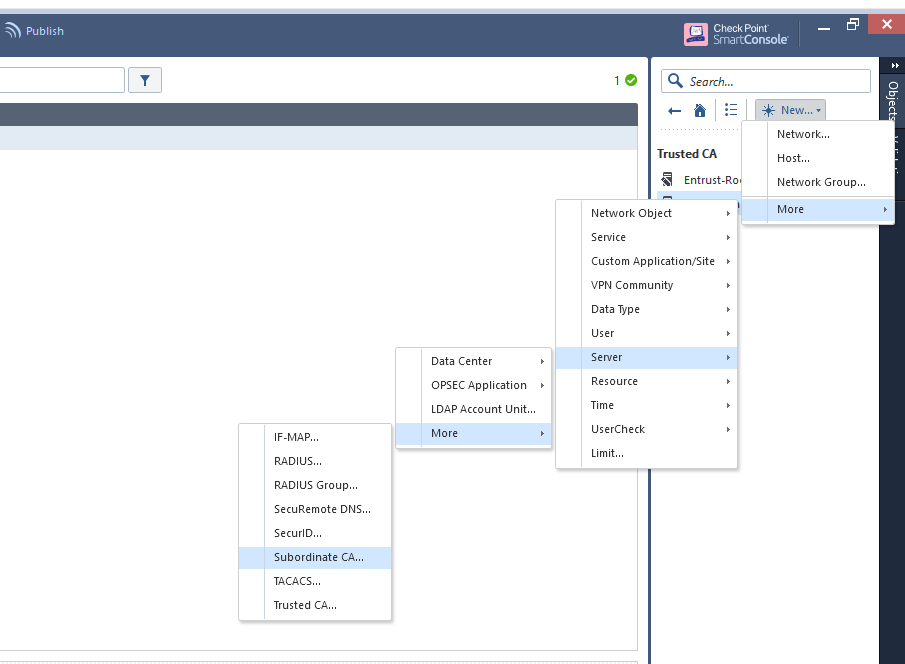

  10. Go to SmartDashboard. Click on *New. Then click on More and find the Server option. Click on More and choose Subordinate CA.

  11. After you choose Subordinate CA, a Dialog Box appears. (Do the same steps as for the Root CA.)

  12. Name the Subordinate CA (for example: Intermediate CA or Godaddy-inter ca).

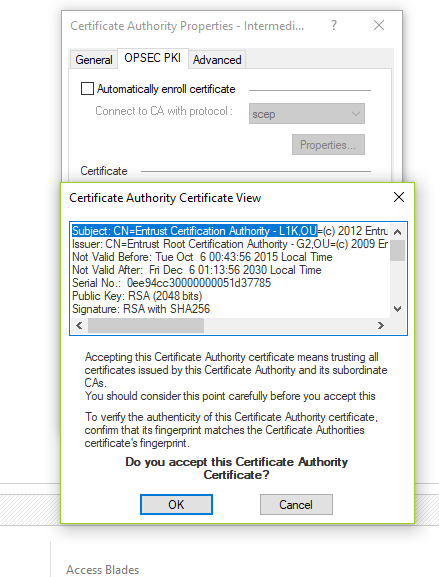

  13. Accept the prompt, select the certificate from step 13:

  14. The Intermediate and Root CA certificates are available under the Server's section of the object tree:

    Go to SmartDashboard > Object Tree' and click on Servers

  15. You have now successfully installed the certificate. You can generate the CSR, as shown below:

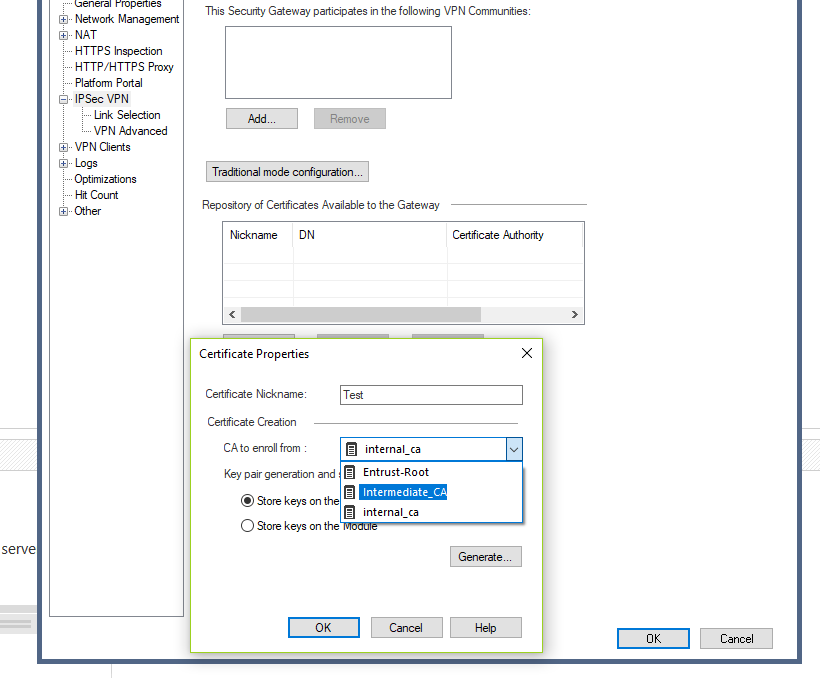

    Under 'SmartDashboard > click on a Particular Gateway object > click on IPSec VPN'. Then click on ADD and choose the Relevant Certificate through which you would like to generate the CSR.

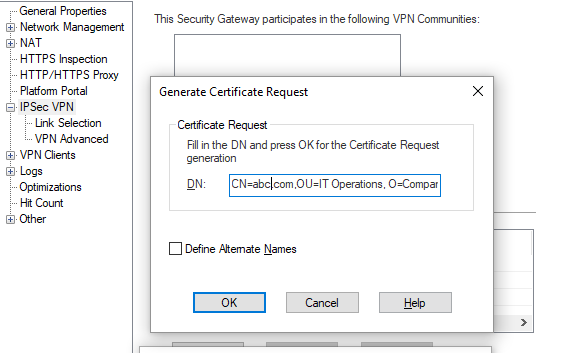

  16. If this is a new Certificate request, the general format for the DN is as follows:

    OU=Group name (example: IT Operations)

    O=Company Name (example: Check Point) or (example: Check Point\, Ltd)

    L=Location/City information

    ST=State (DO NOT USE "s=")

    C=Country (example: US)

    (Example: “,OU=IT Operations, O=Company Name, L=City, ST=State, C=US”)

  17. After you generate the CSR, you will find the certificate under the IPSec repository -> Click on View. Then click on Save to File.

     View Certificate

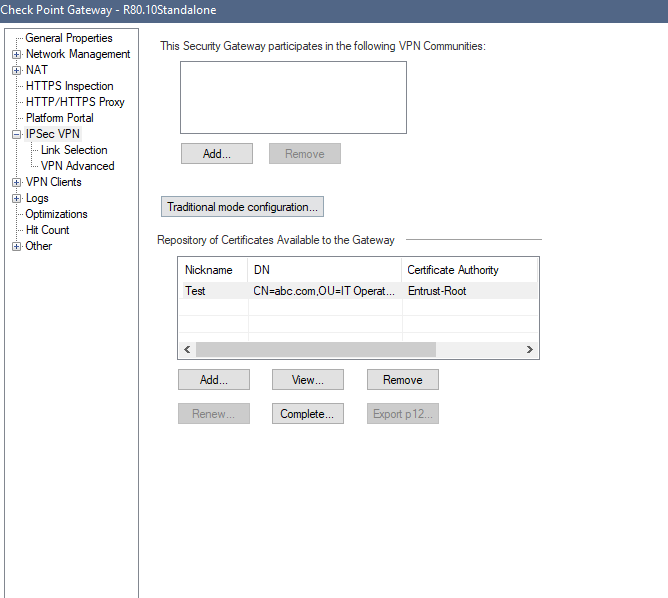

  18. After you generate the CSR, you can export it (it will be a .req file) and submit it to the third party. When you get the file back from the third party, save the file, and then go back to the Gateway properties window > VPN > select the certificate, and click Complete.
    Select the signed CSR and click Open. Review the details of the certificate. It should be signed by the same (Root) CA and intermediate CA/Direct CA. Otherwise, it displays an error. For more information, refer to sk60223: How to fix "The direct CA certificate in the received chain doesn't match the CA certificate for which you created the certificate request"

    After the certificate is installed, click OK and install the policy. The SSL certificate will be installed on the Gateway.
