LED indicators on Embedded GAIA appliances Technical Level
Solution

1550 Branch Office Appliance

1590 Branch Office Appliance

Key

Item

Description

1

Power LED

  • Solid Blue - Normal operation
  • Blinking Blue - Boot in progress or installing firmware
  • Red - Error/Alert

Note - This LED is red when the appliance is first turned on.

2

Internet LED

  • Off - No internet connection
  • Blue - Connected
  • Blinking Red - Connection failure

3

Management LED

  • Off - No management
  • Colors - See below

4

WiFi LED (WiFi models only)

  • Off - WiFi off
  • Blue - WiFi on and operates normally
  • Red - WiFi error/alert



The Management LED shows the status of the retries mechanism:

Action

Management LED
Activity

Zero Touch is running

Blinks red (slowly)

Successfully connected to Zero Touch Cloud Server and saved the deployment script.

Blinks red (rapidly)

Zero Touch process is completed. SMP activation is not needed.

Led off

Activation sleeping time.

Blinks Blue (slowly)

Reactivation

Blinks Blue (rapidly)

SMP is connected.

Solid blue

SMP mode is off

LED off

Gateway failed to connect to the SMP and will exit from the retry script.

Constant red

1550 Branch Office Appliance - Back Panel

Key

Item

Description

1

USP port 3.0

For software download and for USB WiFi dongle (2.4GHz).

2

LAN and WAN ports 1 GbE

LAN ports 1-5 and WAN port 1.

3

Console

Plug in the serial console cable here. Baud rate: 115200.

4

Power cord socket

Plug the power adapter cord in here.

5

Factory default

Press the button continuously for 12 seconds to restore the appliance to its factory defaults.

1590 Branch Office Appliance - Back Panel

Key

Item

Description

1

Reset

Short press resets the system but does not remove any user parameters.

2

Ground Screw

Functional grounding.

3

Factory default

Press the button continuously for 12 seconds to restore the appliance to its factory defaults. All user parameters previously configured are removed.

4

LAN ports

LAN ports 1-8 10/100/1000MbE

5

DMZ fiber SFP port

DMZ combination port. The LEDs above indicate connection and speed (see below).

1GbE speed, short and long range.

6

RJ45 DMZ and WAN1 combo port

The DMZ is a combo port of SFP and RJ45 (on the right). Only one can operate at a time once plugged in and connected.

10/100/1000MbE

7

USB port 3.0

USB port 3.0 for software download and external dongle as WiFi.

8

Console

Plug in the serial console cable here. Baud rate: 115200.

9

Power cord socket

Plug the power adapter cord in here.

Network LEDs (WAN and LAN, RJ45 and Fiber) description  for 1550/1590 appliances

RJ45 and 1G SFP

LED1 (Green)

LED2 (Amber)

No link

Off

Off

1G link

On

On

1G Act

Blink

On

100M link

On

Off

100M Act

Blink

Off

10M link

On

Off

10M Act

Blink

Off

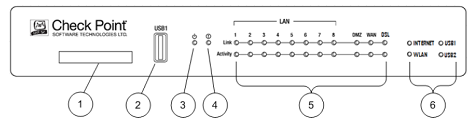

00 SMB Appliances and 1100 Branch Office Appliances

Key

Item

Description

1

Express Card

Express card slot that is used for cellular modems in Express Card form factor.

2

USB1 port

USB1 port that is used for:

  • Cellular and analog modems.
  • Reinstalling the appliance with new firmware.
  • Running a first-time configuration script.

3

Power LED

Green when the appliance is turned on.

4

Notice LED

  • Blinking green during boot.
  • Red when the appliance has a resource problem such as memory shortage.

5

LAN1 - LAN8,

DMZ,
WAN LEDs

Link Indicator

  • Orange when the port speed is 1000 Mbps.
  • Green when the port speed is 100 Mbps.
  • Not lit when the port speed is 10 Mbps.

 Activity Indicator

  • Blinking green when encountering traffic.



DSL LED

Link Indicator

  • Green when an ADSL connection is established.
  • Blinking green when establishing an ADSL connection.
  • Not lit when an ADSL connection is not established.

Activity Indicator

  • Blinking green when encountering traffic.
  • Not lit when the ADSL line is idle.

(Only in the Wireless Network + ADSL model)

6

Internet LED

  • Green when connected to the Internet.
  • Blinking red when the Internet connection is configured but fails to connect.



WLAN LED

Blinking green when encountering traffic.

(Only in Wireless Network and Wireless Network + ADSL models)



USB1, USB2 LEDs

Orange when a USB device is connected.



1200R Ruggedized Appliances

Key

Item

Description

1

SFP (Fiber Optic)

Port activity LED

  • Off - No activity.
  • Green (On) - Link up, no traffic.
  • Green (Blink) - Activity/traffic.

2

SFP (Fiber Optic)

Port speed LED

  • Green - 100 Mbit/s data rate is selected.
  • Amber - 1000 Mbit/s data rate is selected.

3

LAN1-4, DMZ, WAN

Port activity LED

  • Off - No activity.
  • Green (On) - Link up, no traffic.
  • Green (Blink) - Activity/traffic.

4

LAN1-4, DMZ, WAN

Port speed LED

  • Off - 10 Mbit/s data rate is selected.
  • Green - 100 Mbit/s data rate is selected.
  • Amber - 1000 Mbit/s data rate is selected.

5

USB port LEDs

Green when a USB device is connected.

6

Power LED

Green when the appliance is turned on.

7

Alert LED

  • Green when connected to the Internet.
  • Blinking green during boot.
  • Red when the appliance has a resource problem such as memory shortage.
  • Blinking red when the Internet connection is configured but fails to connect.



730 / 750 SMB Appliances and 1430 / 1450 Branch Office Appliances

Key

Item

Description

1

Alert LED

  • Blinking green during boot.
  • Red when the appliance has a resource problem such as memory shortage.

2

Internet LED

  • Green when connected to the Internet.
  • Blinking red when the Internet connection is configured but fails to connect.

3

SD LED

Green when SD card is inserted.

4

USB LED

Green when a USB device is connected.

5

LAN1-LAN6,
DMZ,
WAN LEDS

Speed Indicator

  • Orange when the port speed is 1000 Mbps.
  • Green when the port speed is 100 Mbps.
  • Not lit when the port speed is 10 Mbps.

Activity Indicator

  • Not lit when there is no link.
  • Green when there is a link but no traffic encountered.
  • Blinking green when encountering traffic.

6

Power LED

  • Green when the appliance is turned on.
  • Red when there is a boot error or the appliance is in maintenance mode.

7

USB port

USB port that is used for:

  • Cellular and analog modems.
  • Reinstalling the appliance with new firmware.
  • Running a first-time configuration script.

8

WiFi LED

Only in WiFi models).

  • Blinking green when there is WiFi activity.
  • Green when there is no WiFi activity.



770 / 790 SMB Appliances and 1470 / 1490 Branch Office Appliances

Key

Item

Description

1

USB1 and USB2 ports

USB ports that are used for:

  • Cellular and analog modems.
  • Reinstalling the appliance with new firmware.
  • Running a first-time configuration script.

2

Power LED

  • Green when the appliance is turned on.
  • Red when there is a boot error or the appliance is in maintenance mode

3

Alert LED

  • Green during normal operation.
  • Blinking green during boot.
  • Red when the appliance has a resource problem such as memory shortage or no Internet connection.

4

USB LED

Green when a USB device is connected.

5

Internet LED

  • Green when connected to the Internet.
  • Blinking red when the Internet connection is configured but fails to connect.

6

WiFi LEDs

Separate LEDs for 2.4 GHz and 5 GHz frequencies.

  • Blinking green when there is WiFi activity.
  • Green when the SSID is broadcast but there is no WiFi activity.

(Only in WiFi models)

7

LAN1-LAN16, DMZ,
WAN LEDs

Speed Indicator

  • Orange when the port speed is 1000 Mbps.
  • Green when the port speed is 100 Mbps.
  • Not lit when the port speed is 10 Mbps.

Activity Indicator

  • Not lit when there is no link.
  • Green when there is a link but no traffic encountered.
  • Blinking green when encountering traffic.

8

SD LED

Green when SD card is inserted.

9

Console port

RJ45 or Mini USB Serial connection configured to 115200 bps by default. You can also use this port to connect an analog modem.

Note: when both the RJ45 and Mini USB cables are connected, the Mini USB takes precedence.



910 SMB Appliances

Key

Item

Description

1

Serial console port

RJ45 or Mini USB Serial connection configured to 115200 bps by default. You can also use this port to connect an analog modem. Note: when both the RJ45 and Mini USB cables are connected, the Mini USB takes precedence.



    2

    Alert LED

    • Green during normal operation.
    • Blinking green during boot.
    • Red when the appliance has a resource problem such as memory shortage or no Internet connection.

    3

    SD LED

    • Blinking green when SD is inserted.

    4

    LAN1-LAN16, DMZ, WAN LED

    Speed Indicator:

    • Orange when the port speed is 1000 Mbps.
    • Green when the port speed is 100 Mbps.
    • Not lit when the port speed is 10 Mbps.

    Activity Indicator:

    • Not lit when there is no link.
    • Green when there is a link but no traffic encountered.
    • Blinking green when encountering traffic.

    5

    Internet LED

    • Green when connected to the Internet.
    • Blinking red when the Internet connection is configured but fails to connect.

    6

    USB LED

    Blinking green when a USB device is connected.

    7

    Power LED

    • Green when the appliance is turned on.
    • Red when there is a boot error or the appliance is in maintenance mode

    8

    USB1 and USB2 Ports

    USB ports that are used for:

    • Cellular and analog modems.
    • Reinstalling the appliance with new firmware.
    • Running a first-time configuration script.

    9

    Micro SD

    Insert SD card here.

    This solution has been verified for the specific scenario, described by the combination of Product, Version and Symptoms. It may not work in other scenarios.
